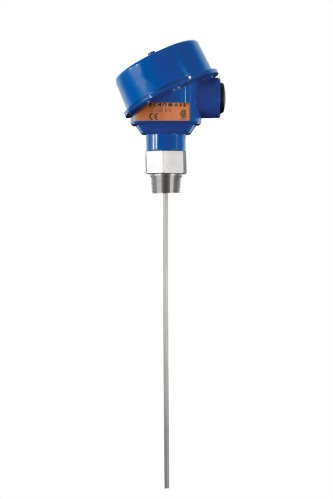

• FLOWLINE LG10-1 Guided Wave Liquid Level Sensor

FLOWLINE LG10-1 Guided Wave Liquid Level Sensor

​Offered in standard or custom probe lengths up to 18’ (5.5m)
Configuration is easy via WebCal software and USB adapter
Rugged 316L stainless steel probe and process mount
Model : LG10-1

Classification

General purpose

Media

Liquids

Application

Day tank, skid or machine, IBC or drum, process tank, waste sump

Probe type

Coaxial

Probe material

316L

Tank location and material

Above or below grade in any tank material

Dirty, coating or crystallizing liquid

No

Range

9.8' (3m)

Output

4-20 mA

Mount

3/4" NPT

Max. temperature

302° F. (150° C.)

Max. pressure

250 PSI (17 bar)


  • Offered in standard or custom probe lengths up to 18’ (5.5m)
  • Configuration is easy via WebCal software and USB adapter
  • Rugged 316L stainless steel probe and process mount
  • 4” (10cm) dead band enables utilization of the entire tank
  • Disturbance scan maps and rejects false echo signal returns
  • Rugged NEMA 4 aluminum enclosure with 316L process mount
  • Self diagnostics with five selectable fail-safe signal outputs
  • Automatic temperature compensation for accurate measurement
