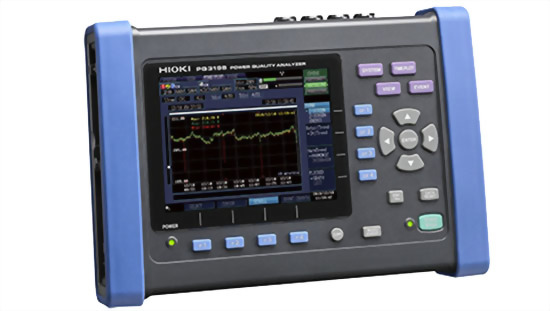

HIOKI PQ3198 Power Quality Analyzer

• Verify power problems in accordance with the IEC61000-4-30 Class A standard
• High accuracy and continuous gapless recording
• (V: ±0.1% of nominal voltage, A: ±0.1% rdg. ±0.1% f.s., W: ±0.2% rdg. ±0.1% f.s.)
Model : HIOKI PQ3198

Measurement line type

Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement)

Voltage ranges

Voltage measurement: 600.00 V rms

Transient measurement 6.0000 kV peak

Current ranges

500.00 mA to 5.0000 kA AC (depends on current sensor in use)

Power ranges

300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use)

Basic accuracy

Voltage: ±0.1% of nominal voltage

Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy

Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy

Measurement items

1. Transient voltage : 2 MHz sampling

2. Frequency cycle : Calculated as one cycle, 40 to 70 Hz

3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle

Current (1/2) RMS: half-cycle calculation

4. Voltage swell, Voltage dips, Voltage interruption

5. Inrush current

6. Voltage waveform comparison

7. Instantaneous flicker value: As per IEC61000-4-15

8. 200 ms frequency: Calculated as 10 or 12 cycles,40 to 70 Hz

9. 10 sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz

10. Voltage waveform peak, Current waveform peak

11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor, and efficiency

12. High-order harmonic component (voltage/ current): 2 kHz to 80 kHz

13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders

14. Harmonic voltage-current phase angle: 1th to 50 th orders

15. Total harmonic distortion factor (voltage/ current)

16. Inter harmonic (voltage/ current): 0.5 th to 49.5 th order

17. K Factor (multiplication factor)

18. IEC Flicker, Δ V10 Flicker

Record

Repeated ON: 1 year, Maximum recording event: 9999 × 366 days (up to 9999 events per day)

Repeated off: 35 days, maximum recording event: 9999 events

Interfaces

SD/SDHC memory card, LAN (HTTP server function / FTP function), USB2.0 (for communication)

Display

6.5-inch TFT color LCD (640 × 480 dots)

Power supply

AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery Pack Z1003 (Continuous use: 180 minutes, Charging time: Max. 5 hr 30 m with AC adapter)

Dimensions and mass

300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.6 kg (91.7 oz) (including Battery Pack Z1003)

Accessories

Instruction manual ×1, Measurement guide ×1, Voltage Cord L1000 ×1 set (Red/ Yellow/ Blue/ Gray each 1, Black 4, 3m (9.84ft) length, Alligator clip ×8), Color clip, AC Adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, SD Memory Card 2GB Z4001 ×1, Application software (PQ ONE) ×1

   Verify power problems in accordance with the IEC61000-4-30 Class A standard

   High accuracy and continuous gapless recording

   (V: ±0.1% of nominal voltage, A: ±0.1% rdg. ±0.1% f.s., W: ±0.2% rdg. ±0.1% f.s.)

   Broadband voltage range lets you measure even high-order harmonic components of up to 80 kHz

   Maximum 6000 V peak transient voltage up to 700 kHz

   Measure up to 6000 A AC

   Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4

   Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency

   Easily create reports with bundled PQ ONE application software

   Optional GPS BOX for synchronizing multiple devices
