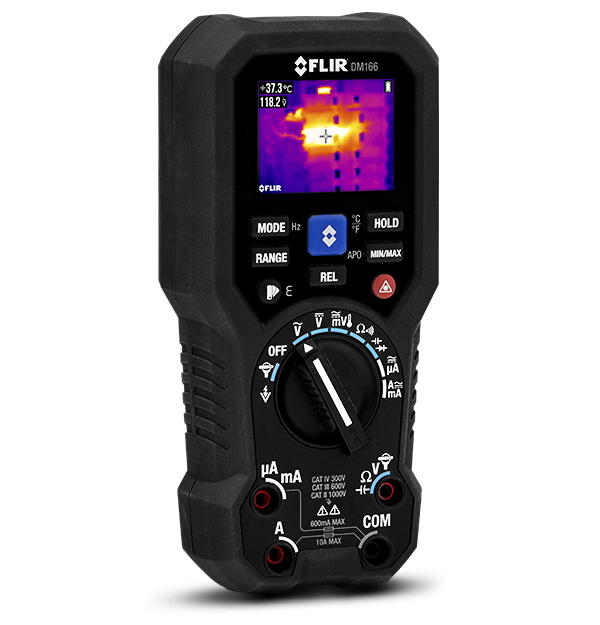

FLIR DM166 Imaging TRMS Multimeter

​Quickly scan for overheating components with IGM
Diagnose faults with broad DMM test functions
Troubleshoot easier with the unique combination of onboard thermal imaging and traditional DMM test functions
Model : FLIR DM166

AC/DC mAmps

Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7%

AC/DC microAmps

Range: 4000 µA Basic Accuracy: ±1.5%

AC/DC mVolt

Range: 600.0 mV Basic Accuracy: ±1% / ±0.5%

AC/DC Voltage

Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5%

Capacitance

Range:     Basic Accuracy: 200.0 nF        ±1.5% 200.0 µF       ±1.5% 2.000 mF   ±2.0% 10.00 mF      ±5.0%

Diode Test

Range: 3.000 V Basic Accuracy: ±0.9%

Frequency Range

Range: 99.99 kHz Basic Accuracy: ±1.0%

Resistance

Range: Basic Accuracy: 600.0 Ω        ±0.3% 600.0 kΩ       ±0.5% 6.000 MΩ  ±0.9% 60.00 MΩ     ±1.5%

Temperature Range

–10 to 150°C (14 to 302°F)

Thermocouple

–40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)

VFD AC Voltage

Range: 600.0 V RMS Basic Accuracy: ±1.0%

AC/DC Amps

Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7%

Continuity check

Between 30 Ω and 480 Ω

True RMS

Yes


  • Quickly scan for overheating components with IGM
  • Diagnose faults with broad DMM test functions
  • Troubleshoot easier with the unique combination of onboard thermal imaging and traditional DMM test functions
  • Safely check for live connections using non-contact temperature measurement
  • Carefully measure voltage with integrated non-contact voltage detection
  • Work with peace of mind knowing your meter has a CAT III-600V, CAT IV-300V safety rating
