Pressmaster KSA 0725S Crimping Tool

KSA-0725S is a crimping tool for insulated connectors, 0.75 - 2.5 mm²/AWG 22-14 (red, blue), Oval-Crimp.
Model : Pressmaster KSA 0725S

KSA-0725S is a crimping tool for insulated connectors, 0.75 - 2.5 mm²/AWG 22-14 (red, blue), Oval-Crimp.

Length

204 mm/8.03"

Width

22 mm/0.87"

Height

76 mm/2.99"

Weight

500 gr/1.1 lb

Wire size

0.75-2.5 mm²/ AWG 22- AWG 14

Crimp dimensions mm/mm²

0,75 - 1,5 mm²/1.5 - 2,5 mm²

Crimp dimensions inch/AWG

AWG 22 - AWG 16/AWG 16 - AWG 14

Connector

Insulated connectors

Description

For pre insulated red and blue connectors.

Life span, cycles

50,000

lHigh strength, through hardened alloy steel construction

lUnique mechanism significantly reduces hand force requirement over competing crimping tools

lVersatile and easy to customize for right hand or left hand users.

lNon-slip pad holds tool in place when leveraging on a work surface

lFull cycle crimp mechanism to ensure consistent, reliable crimp

lRatchet release mechanism to clear miscrimps and obstructions

lPrecision eccentric adjustment for consistent performance and ability to calibrate

lHole in handle allows attachment of safety strap

lEach tool has a unique serial number for traceability

Related Products

Pressmaster KEB 1025 Crimping Tool

Pressmaster KEB 1025 Crimping Tool

Pressmaster Mobile die set/4300-3129/AAA

Pressmaster Mobile die set/4300-3129/AAA

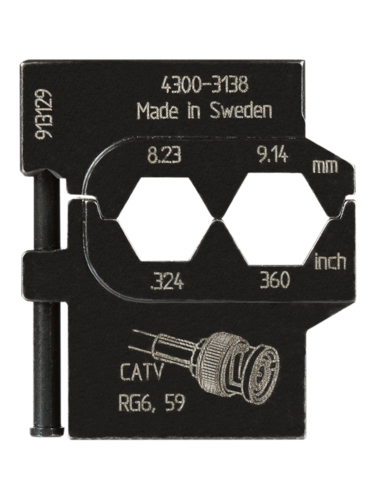

Pressmaster Mobile die set/4300-3138/AAA
