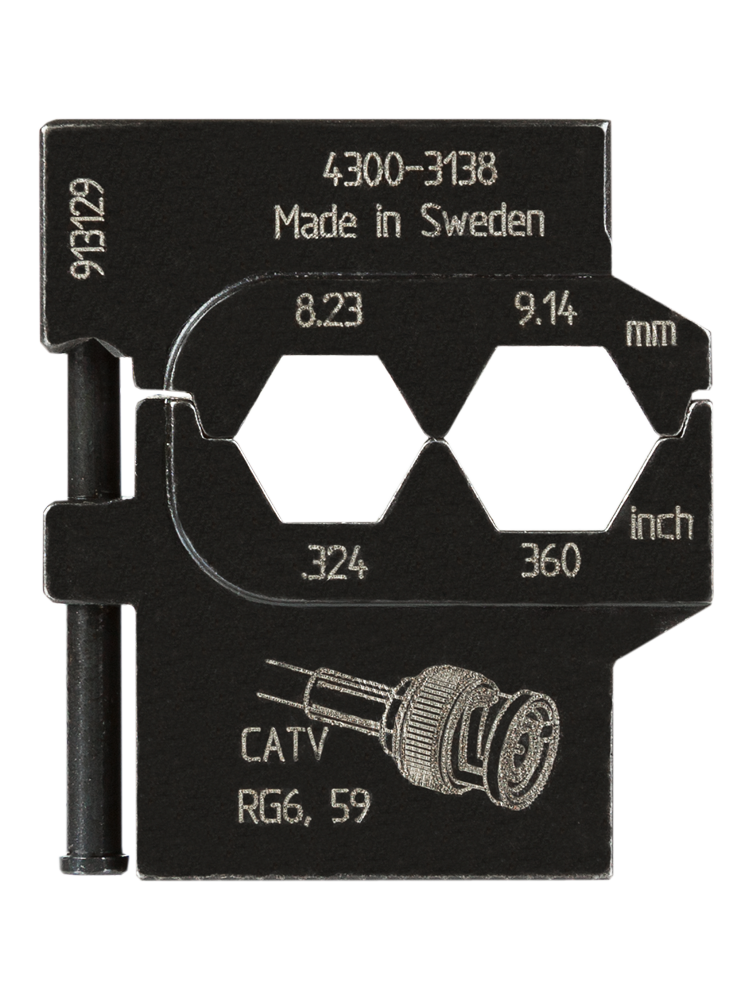

Pressmaster Mobile die set/4300-3138/AAA

Mobile die set for coaxial connectors: CATV RG 6.59. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.
Model : 行動式壓接模組 /4300-3138/AAA

Mobile die set for coaxial connectors: CATV RG 6.59. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

Length

34 mm/1.34"

Width

10 mm/0.39"

Height

39 mm/1.54"

Weight

79 gr/0.17 lb

Crimp dimensions mm/mm²

8.23 mm HEX/9.14 mm HEX

Crimp dimensions inch/AWG

0.324'/0.360'

Connector

Coaxial connector

Description

For example CATV connectors on RG 6.59.

Life span, cycles

20,000 Cables: 1695, RG 6, RG143A/U, RG212/U, RG222/U, RG6 Quad, RG6A/U, TWINAX

lReliable – crimping performance is consistent and accurate with a parallel action stroke.

lEasy to use – designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.

lVersatile – an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.

lWeight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.

lComfortable – the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions

lHole in handle allows attachment of safety strap
