Pressmaster PCC 5310/3,80

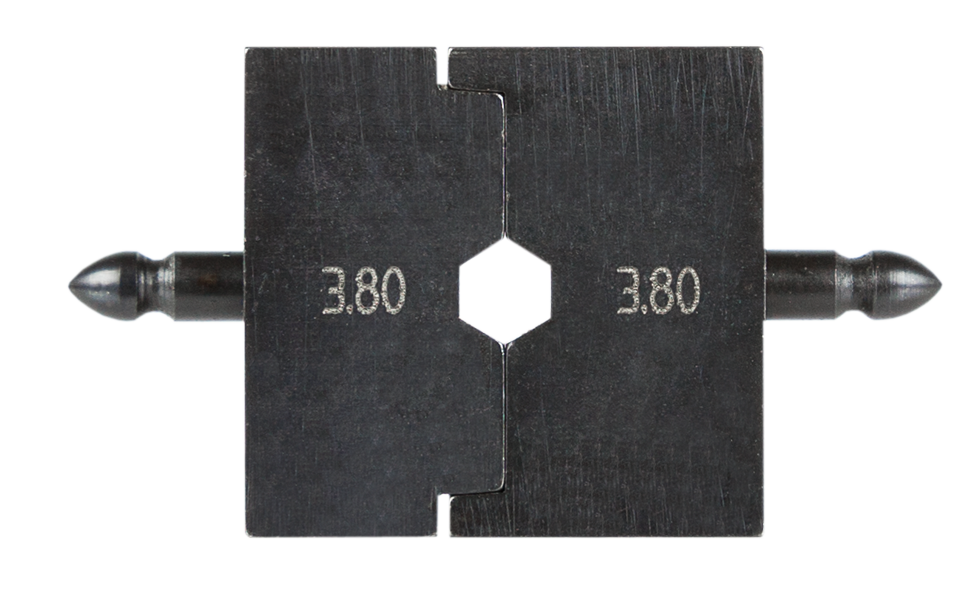

PCC-5310 Die set with nest 3.80 mm/.150\", HEXCrimp. This is one of the interchangeable crimp die sets for the PCC-5310 frame. The user can cover several coaxial connectors in just one tool frame.
Model : PCC 5310/3,80

PCC-5310 Die set with nest 3.80 mm/.150", HEXCrimp. This is one of the interchangeable crimp die sets for the PCC-5310 frame. The user can cover several coaxial connectors in just one tool frame.

Length

38 mm/1.5"

Width

21 mm/0.83"

Height

8 mm/0.31"

Weight

30 gr/0.07 lb

Crimp dimensions mm/mm²

3.80 mm HEX

Crimp dimensions inch/AWG

0.150

Connector

Coaxial connector

Description

For type BT connectors.

Life span, cycles

50,000

Cables

ST212, ST214

lHigh strength, through hardened alloy steel construction

lFull cycle crimp mechanism to ensure consistent, reliable crimp

lRatchet release mechanism to clear miscrimps and obstructions

lPrecision eccentric adjustment for consistent performance and ability to calibrate

lEach tool has a unique serial number for traceability.
