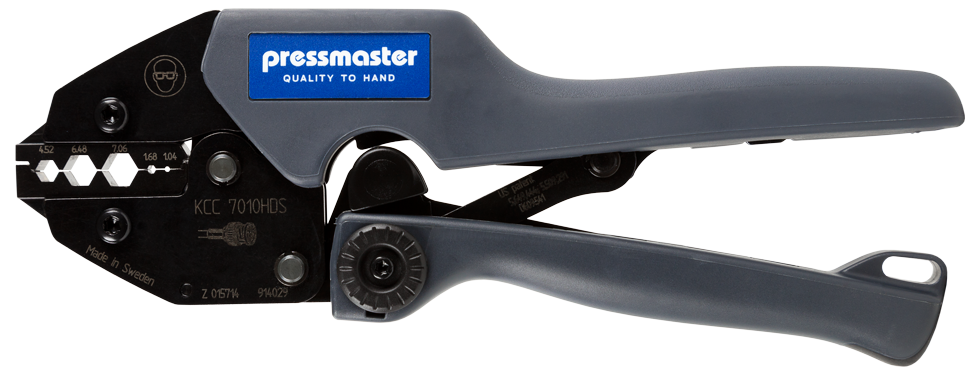

Pressmaster KCC 7010HDS Coaxial Crimping Tool
KCC-7010HDS is a coaxial crimping tool for
coaxial connectors HDTV, BNC and TNC on Belden 1855A, 1865A, 1505A, 1505F,
1694A, 1694F.
|
Length |
204 mm/8.03" |
|
Width |
22 mm/0.87" |
|
Height |
76 mm/2.99" |
|
Weight |
500 gr/1.1 lb |
|
Crimp dimensions mm/ mm² |
7,06/6,48/4,52/1,68/1,04 |
|
Crimp dimensions inch/AWG |
.278/.255/.178/.066/.041 |
|
Connector |
CATV and Coaxial connector |
|
Description |
For example HDTV BNC/TNC connectors on Belden1855A, 1865A, 1505A, 1505F, 1694A, 1694F. |
|
Life span, cycles |
50,000 |
|
Cables |
1695, RG108A/U, RG122/U, RG142B/U, RG180B/U, RG210/U, RG279/U, RG303/U, RG59B/U, RG62A/U, RG62B/U, RG71B/U |
lHigh strength, through hardened alloy steel construction
lUnique mechanism significantly reduces hand force requirement over competing crimping tools
lVersatile and easy to customize for right hand or left hand users.
lNon-slip pad holds tool in place when leveraging on a work surface
lFull cycle crimp mechanism to ensure consistent, reliable crimp
lRatchet release mechanism to clear miscrimps and obstructions
lPrecision eccentric adjustment for consistent performance and ability to calibrate
lHole in handle allows attachment of safety strap
lEach tool has a unique serial number for traceability
