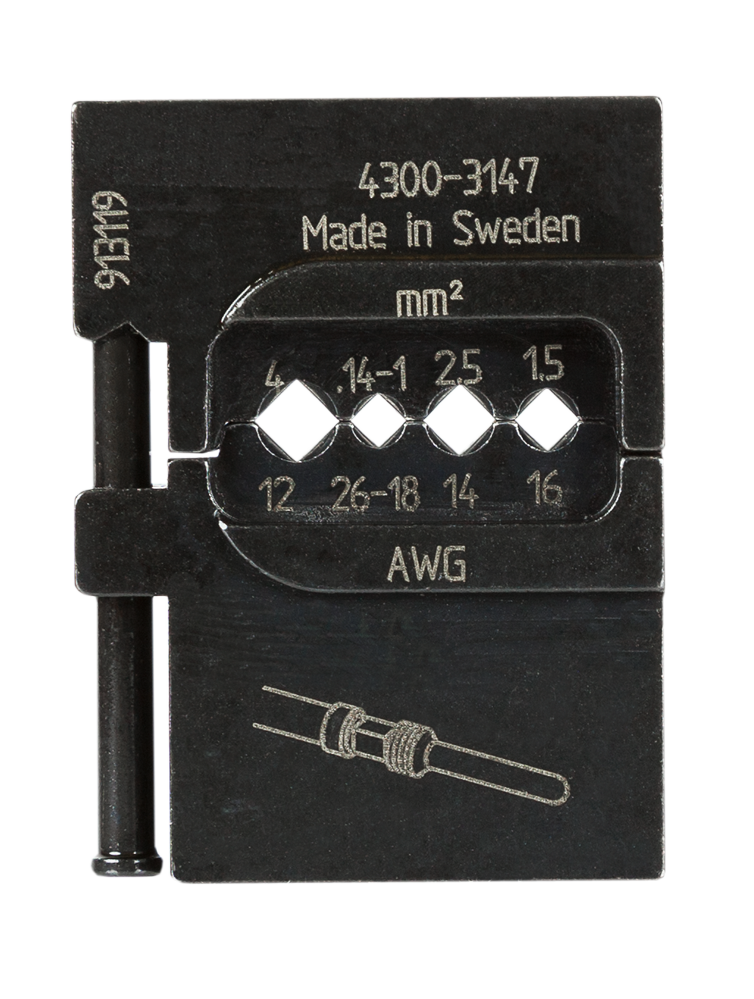

• Pressmaster Mobile die set/4300-3147/AAA

Pressmaster Mobile die set/4300-3147/AAA

Mobile die set for Turned pin connectors, 0.14-4 mm²/AWG 26-12. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.
Model : 活動式壓接模組/4300-3147/AAA

Mobile die set for Turned pin connectors, 0.14-4 mm²/AWG 26-12. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

Length

29 mm/1.14"

Width

10 mm/0.39"

Height

39 mm/1.54"

Weight

72 gr/0.16 lb

Wire size

0.14-4 mm² / AWG 26-12

Crimp dimensions mm/mm²

0.14 - 1.0 mm²/1.5 mm²/2.5 mm²/4 mm²

Crimp dimensions inch/AWG

AWG 26 - AWG 18/AWG 16/AWG 14/AWG 12

Connector

Turned pin connectors

Description

For turned pin connectors.

Life span, cycles

20,000

lReliable – crimping performance is consistent and accurate with a parallel action stroke.

lEasy to use – designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.

lVersatile – an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.

lWeight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.

lComfortable – the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions

lHole in handle allows attachment of safety strap
