Current Probes, Clamp Sensors

View:

HIOKI 3276 Current on Probe

• Waveform observation across a wide band from DC to MHz
• Connects directly to oscilloscope or Memory HiCorder BNC input terminal *1
• High S/N characteristics enable the measurement of 10 mA order current waveforms (3273-50, 3276)
*1 Connecting the device’s metal BNC terminal to a Memory HiCorder’s plastic BNC terminal may damage the plastic terminal or cause it to become misshapen.

HIOKI 3273-50 Clamp on Probe

• Waveform observation across a wide band from DC to MHz
• Connects directly to oscilloscope or Memory HiCorder BNC input terminal *1
• High S/N characteristics enable the measurement of 10 mA order current waveforms (3273-50, 3276)
*1 Connecting the device’s metal BNC terminal to a Memory HiCorder’s plastic BNC terminal may damage the plastic terminal or cause it to become misshapen.

HIOKI 3275 Current on Probe

• Waveform observation across a wide band from DC to MHz
• Connects directly to oscilloscope or Memory HiCorder BNC input terminal *1
*1 Connecting the device’s metal BNC terminal to a Memory HiCorder’s plastic BNC terminal may damage the plastic terminal or cause it to become misshapen.

HIOKI 3274 Clamp on Probe

• Waveform observation across a wide band from DC to MHz
• Connects directly to oscilloscope or Memory HiCorder BNC input terminal *1
*1 Connecting the device’s metal BNC terminal to a Memory HiCorder’s plastic BNC terminal may damage the plastic terminal or cause it to become misshapen.

HIOKI CT9557 Sensor Unit

• Power supply for high-precision current sensors with waveform output functionality
• Output a single waveform from an aggregate of input waveforms

HIOKI PW9100 AC/DC Current Box

• World-leading measurement bands and accuracy
• Wide-band DC to 3.5MHz, 50A AC/DC rated input
• ±0.04% power accuracy in combination with PW6001

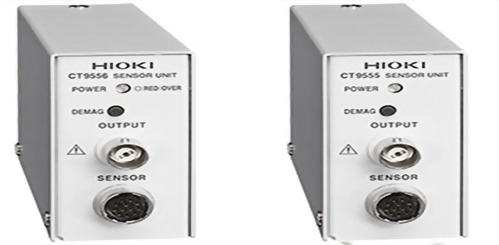

HIOKI CT9555 / CT9556 Sensor Unit

CT9555 For the CT6841-05, etc., ME15W connector
CT9556 For the CT6841-05, etc., ME15W connector

HIOKI CT7700 Series AC/DC Auto-zero Current Sensor

CT7731 100 A AC/DC, φ33 mm (1.30 in)
CT7736 600 A AC/DC, φ33 mm (1.30 in)
CT7742 2000 A AC/DC, φ55 mm (2.17 in)

HIOKI CT7600 Series AC/DC Current Sensor

CT7631 100 A AC/DC, φ33 mm (1.30 in)
CT7636 600 A AC/DC, φ33 mm (1.30 in)
CT7642 2000 A AC/DC, φ55 mm (2.17 in)

HIOKI CT7040 Series Flexible AC Current Sensors in 3 Sizes

• Thinner cables are easier to use in confined spaces and with complicated wiring
• Supports large current measurements up to 6000 A
• Wide 10 Hz to 50 kHz band with excellent frequency characteristics

HIOKI CT9667 AC Flexible Current Sensor

CT9667-01 φ100 mm (3.94 in)
CT9667-02 φ180 mm (7.09 in)
CT9667-03 φ254 mm (10.00 in)

HIOKI CT6875 / CT6876 AC/DC Current Sensor

CT6875 500 A AC/DC, ME15W terminal, 3 m (9.84 ft) cable length
CT6875-01 500 A AC/DC, ME15W terminal, 10 m (32.81 ft) cable length
CT6876 1000 A AC/DC, ME15W terminal, 3 m (9.84 ft) cable length
CT6876-01 1000 A AC/DC, ME15W terminal, 10 m (32.81 ft) cable length
