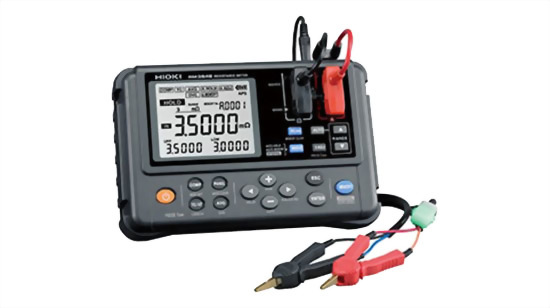

• HIOKI RM3548 Resistance Meters

HIOKI RM3548 Resistance Meters

• 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
• Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
• Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
Model : HIOKI RM3548

Resistance range

3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps

Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.

Testing current

[at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC

Open-terminal voltage

5.5 V DC max.

Temperature measurement

-10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy)

Measurement speed

Fixed

Display refresh rate

Without OVC: approx. 100ms, With OVC: approx. 230ms

Functions

Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS),

Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC)

Memory storage

Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files)

Power supply

LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA max.

Dimensions and mass

192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D, 770 g (27.2 oz)

Accessories

Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1

   0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current

   Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ

   Easily record up to 1,000 data points in memory simply by applying the instrument’s probes

   Smoothly capture temperature-rise test data using interval measurement

   Portable design is ideal for maintenance and testing of large equipment
