• HIOKI 9657-10 Clamp on Leak Sensor

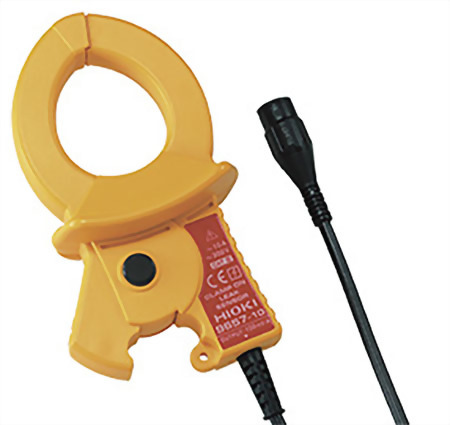

HIOKI 9657-10 Clamp on Leak Sensor

• For general purpose leak current testing
Model : HIOKI 9657-10

Rated primary current

AC 10 A (for leak current measurement, 50/60 Hz)

Max. allowable input (45-66 Hz)

Max. 30 A of continuous input

Rated output current

AC 100 mV/A

Amplitude accuracy (45-66 Hz)

±1.0 % rdg. ±0.05 % f.s.

Phase accuracy

±3 ° (at 50 Hz or 60 Hz)

Frequency characteristics

40 Hz to 5 kHz: ± 3%

(Add to amplitude accuracy)

Max. rated voltage to earth

AC 300 V rms (Insulated conductor, CAT III)

Core diameter

φ 40 mm (1.57 in)

Dimensions and mass

74 mm (2.91 in)W × 145 mm (5.71 in)H × 42 mm (1.65 in)D, 380 g (13.4 oz), Cord length: 3 m (9.84 ft)

Accessories

Instruction manual ×1

For general purpose leak current testing

Related Products

HIOKI CT7700 Series AC/DC Auto-zero Current Sensor

HIOKI CT7700 Series AC/DC Auto-zero Current Sensor

HIOKI 9272 Current on Probe

HIOKI 9272 Current on Probe

HIOKI CT6877 AC/DC Current Sensor

HIOKI CT6877 AC/DC Current Sensor

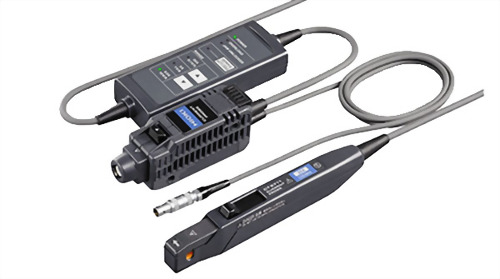

HIOKI CT6710 / CT6711 Current Probe
