Super Megohm Meters, Insulation Testers

View:

HIOKI 3490 Analog Insulation Tester, Megohmmeter

• 3-range testing voltage of 250/500 V (insulation resistance testing up to 100 MΩ), and 1000 V (insulation testing up to 4000 MΩ)
• Continuity check at 3 Ω range via 200 mA testing
• Bright LED luminous scale
• Check for live circuits and battery status

HIOKI SM-8213, SM-8215, SM-8220 Super Megohmmeter

• Ultra-megohm measurement
• Digital/analog display on LCD
• Compatible for measurement of several sample types with electrodes & other devices

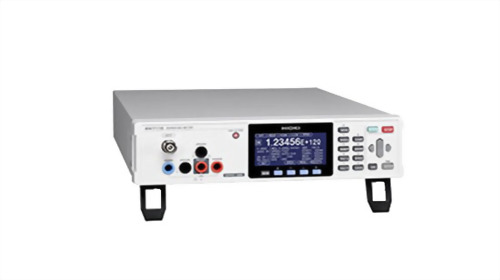

HIOKI SM7110 / SM7120 Super Megohmmeters

• 300 times better noise resistance
• Max. 2000 V output : SM7120

HIOKI SM7420 Super Megohmmeters

• 300 times better noise resistance
• 6000 ps/minute - ideal for mass production
• Channel-independent low capacity contact check

HIOKI IR4016-20/IR4017-20/IR4018-20 Analog Insulation Tester, Megohmmeter

IR4016-20 : Single range testing voltage of 500 V
IR4017-20 : Single range testing voltage of 500 V
IR4018-20 : Single range testing voltage of 1000 V

HIOKI IR4053 Insulation Tester for Photovoltaic Systems

• Safely and accurately measure PV insulation resistance even while generating solar power
• Built-in PV dedicated function, display measurements in 4 seconds
• Five ranges (50/125/250/500/1000V) built in for normal insulation resistance measurement

HIOKI IR4057-20 Digital Insulation Tester, Megohmmeter

• 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
• Digital bar graph
• Stable & high-speed digital readings, 0.3 second response time for PASS/ FAIL decisions

HIOKI SM7810 High Insulation Resistance Tester

• Test the leakage current of MLCCs at the fastest speed of 6.8ms simultaneously over 8 channels
•Conduct high-speed leakage current testing of large-capacity MLCCs in the high current range (1mA)
• Improve testing reliability using the contact check function

HIOKI IR4056-20 Digital Insulation Tester, Megohmmeter

• 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
• Stable & medium-speed digital readings, 0.8 second response time of PASS/ FAIL decisions
• Drop proof onto concrete from 1m (3.28 feet)

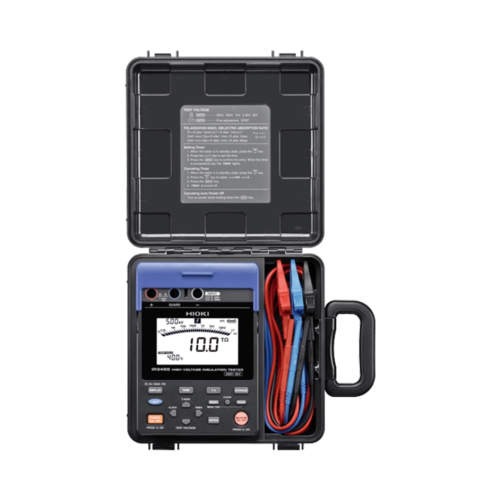

HIOKI IR3455 High Voltage Insulation Tester

• Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
• Wide testing voltage range, up to 5.00 kV from 250 V DC
• Wide measurement insulation range, up to 10 TΩ

HIOKI SM7860 Power Source Unit

• Support for multi-channel systems up to 32-channel output
• 8-channels or 16-channels dual-line output voltage setting
• Positive and negative polarities required for the MLCC test line included in a single unit
