• HIOKI 3273-50 Clamp on Probe

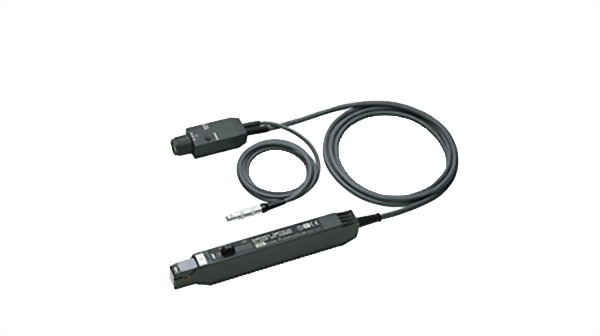

HIOKI 3273-50 Clamp on Probe

• Waveform observation across a wide band from DC to MHz
• Connects directly to oscilloscope or Memory HiCorder BNC input terminal *1
• High S/N characteristics enable the measurement of 10 mA order current waveforms (3273-50, 3276)
*1 Connecting the device’s metal BNC terminal to a Memory HiCorder’s plastic BNC terminal may damage the plastic terminal or cause it to become misshapen.
Model : HIOKI 3273-50

Frequency bandwidth

DC to 50 MHz (-3 dB)

Rise time

7 ns or shorter

Noise level

2.5 mA rms max. (bandwidth limited to 20 MHz)

Continuous allowable input

30 A rms (requires derating at frequency)

Max. allowable peak input

50 A peak (non continuous)

Amplitude accuracy (30 min. after power-on, after degaussing and zero-adjustment)

±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 30 A rms)

±2 % rdg. (DC, 45 to 66 Hz, 30 A rms to 50 A peak)

Output rate

0.1 V/A (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)

Measurable conductors

Insulated conductor

Core diameter

φ 5 mm (0.20 in)

Power supply

±12 V ±0.5 V, 5.6 VA max.

Dimensions and mass

±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 30 A rms)

±2 % rdg. (DC, 45 to 66 Hz, 30 A rms to 50 A peak)

Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft)

Accessories

Instruction manual ×1, Soft case × 1

• Waveform observation across a wide band from DC to MHz

• Connects directly to oscilloscope or Memory HiCorder BNC input terminal *1

• High S/N characteristics enable the measurement of 10 mA order current waveforms (3273-50, 3276)


*1 Connecting the device’s metal BNC terminal to a Memory HiCorder’s plastic BNC terminal may damage the plastic terminal or cause it to become misshapen.
