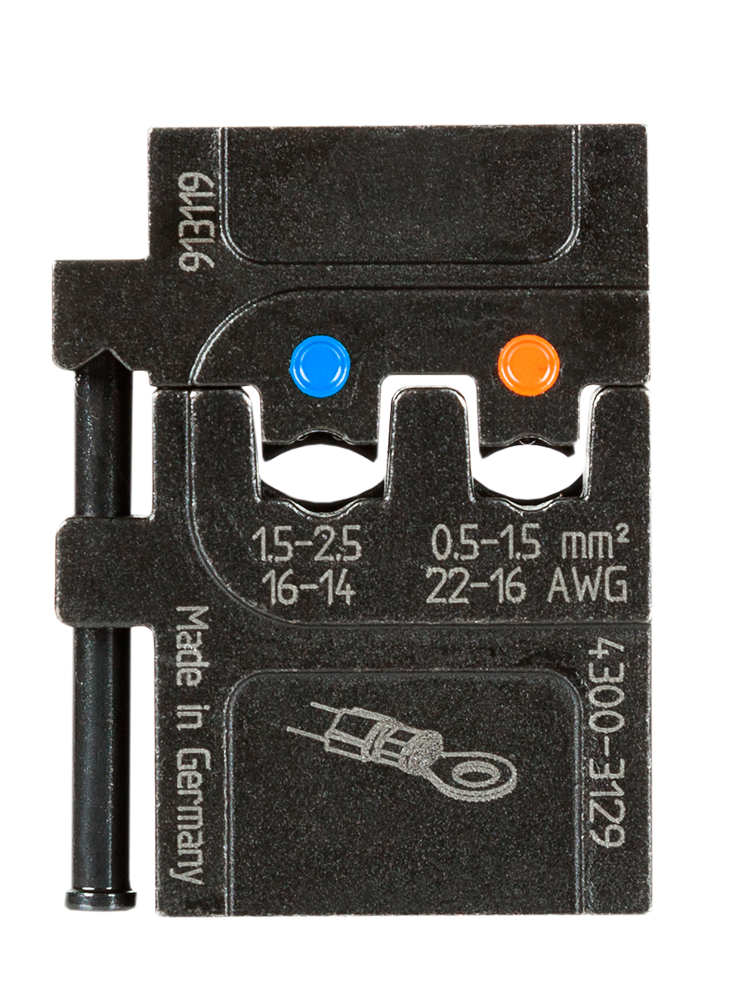

• Pressmaster Mobile die set/4300-3129/AAA

Pressmaster Mobile die set/4300-3129/AAA

Mobile die set for insulated connectors, 0.5-2.5 mm²/AWG 22-14 (red, blue). This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.
Model : 活動式壓接模組 /4300-3129/AAA

Mobile die set for insulated connectors, 0.5-2.5 mm²/AWG 22-14 (red, blue). This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

Length

29 mm/1.14"

Width

9.5 mm/0.37"

Height

39 mm/1.54"

Weight

75 gr/0.17 lb

Wire size

0.5-2.5 mm² / AWG 22-14

Crimp dimensions mm/mm²

0.5 - 1.5 mm²/1.5 - 2.5 mm²

Crimp dimensions inch/AWG

AWG 22 - AWG 16/AWG 16 - AWG 14

Connector

Insulated connectors

Description

For pre insulated red and blue connectors.

Life span, cycles

20,000

lReliable – crimping performance is consistent and accurate with a parallel action stroke.

lEasy to use – designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.

lVersatile – an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.

lWeight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.

lComfortable – the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions

lHole in handle allows attachment of safety strap
