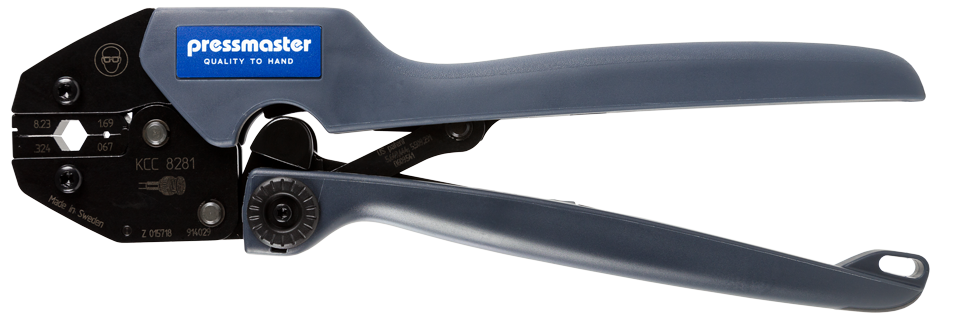

• Pressmaster KCC 8281 Coaxial Crimping Tool

Pressmaster KCC 8281 Coaxial Crimping Tool

KCC-8281 is a coaxial tool for type BNC, TNC, Twinax connectors, RG 6, 143, 212. Hex-crimp 8,23 and 1,69/.067" and .324".
Model : Pressmaster KCC 8281

KCC-8281 is a coaxial tool for type BNC, TNC, Twinax connectors, RG 6, 143, 212. Hex-crimp 8,23 and 1,69/.067" and .324".

Length

256 mm/10.08"

Width

22 mm/0.87"

Height

80 mm/3.15"

Weight

560 gr/1.23 lb

Crimp dimensions mm/ mm²

8,23 mm/1,69 mm

Crimp dimensions inch/AWG

.324/.067

Connector

Coaxial connector

Description

For example BNC, TNC, Twinax connectors on RG 6, 143, 212.

Life span, cycles

50,000

Cables

1695, RG143A/U, RG212/U, RG222/U, RG6 Quad, RG6A/U, TWINAX

lHigh strength, through hardened alloy steel construction

lUnique mechanism significantly reduces hand force requirement over competing crimping tools

lVersatile and easy to customize for right hand or left hand users.

lNon-slip pad holds tool in place when leveraging on a work surface

lFull cycle crimp mechanism to ensure consistent, reliable crimp

lRatchet release mechanism to clear miscrimps and obstructions

lPrecision eccentric adjustment for consistent performance and ability to calibrate

lHole in handle allows attachment of safety strap

lEach tool has a unique serial number for traceability
