• HIOKI RM3542 Resistance Meter

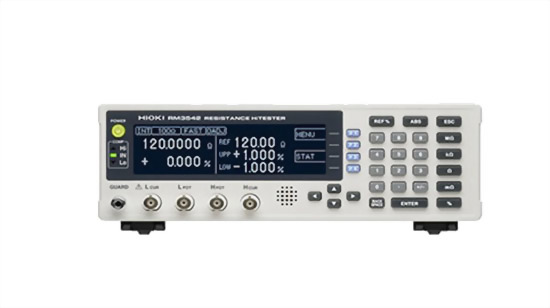

HIOKI RM3542 Resistance Meter

• High speed and accuracy maximize productivity in automated systems
• Multiple checking functions ensure proper contact for reliable measurements
• Low-power resistance mode measures chip inductors and EMC suppression components
• Supports sample inspections during the manufacturing process
Model : HIOKI RM3542

Resistance range

[at Low Power OFF] 100 mΩ range (Max. 120.0000 mΩ, 0.1 μΩ resolution) to 100 MΩ range (Max. 120.0000 MΩ, 100 Ω resolution), 10 steps

[at Low Power ON] 1000 mΩ range (Max. 1200.000 mΩ, 1 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 4 steps

Display

Monochrome graphic LCD 240 × 64 dot, white LED backlight

Measurement accuracy

[with SLOW mode, at 100 mΩ range] ±0.015 % rdg. ±0.002 % f.s.

[with SLOW mode, at 1000 Ω range] ±0.006 % rdg. ±0.001 % f.s. (the best case)

Testing current

[at 100 mΩ range] 100 mA DC to [at 100 MΩ range] 100 nA DC

Open-terminal voltage

20 V DC max.

Sampling rate

FAST, MEDIUM, SLOW, 3 settings

Measurement times

[at 100 Ω /1000 Ω ranges, with Low Power OFF]

FAST: 0.9 ms, MED: 3.6 ms, SLOW: 17 ms (minimum time)

Integration time

0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz

Note: PLC = one power line cycle (mains wave-form period)

Other functions

Comparator (compare setting value with measurement value), Delay (set to allow for mechanical delay of trigger input and probing, or set to allow for measurement object response), OVC (offset voltage compensation), Measurement fault detection, Probe short-circuit detection, Improve contact, Auto-memory, Statistical calculations, Settings monitor (when using two instruments, a difference in settings causes warning notification), Retry, Trigger function. etc,.

Interfaces

RS-232C, Printer, GP-IB (Model RM3542-01)

External I/O

Trigger, Hold input, Comparator output, Settings monitor terminal

Power supply

100 to 240 V AC, 50/60 Hz, 30 VA max.

Dimensions and mass

260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 2.9 kg (102.3 oz)

Accessories

Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×1

   High speed and accuracy maximize productivity in automated systems

  Multiple checking functions ensure proper contact for reliable measurements

   Low-power resistance mode measures chip inductors and EMC suppression components

   Supports sample inspections during the manufacturing process
