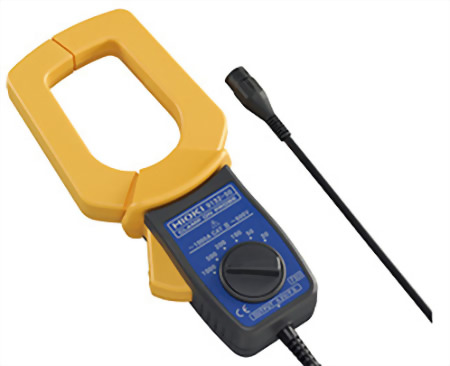

HIOKI 9132-50 Current on Probe

• Economical clamp sensors for waveform recording with Memory HiCorders
• Choose from up to six general-purpose ranges
Model : HIOKI 9132-50

Rated current

20 A to 1000 A AC, 6 ranges

Accuracy

±3 % rdg. ±0.2 % f.s. (45 to 66 Hz)

Frequency characteristics

Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 1 % rdg.

Output rate

0.2 V AC f.s. (f.s. = setting rage)

(Connect to a voltage input device providing a high input impedance of 1 MΩ)

Max. allowable input

1000 A rms continuous (all ranges)

(For 40 Hz to 500 Hz: 100 %, and for 500 Hz to 1 kHz: within 90 % of derating)

Max. rated voltage to earth

600 Vrms (50/60 Hz, CAT III)

Core diameter

φ55 mm (2.17 in), or 20 mm (0.79 in) × 80 mm (3.15 in) busbar

Dimensions and mass

100 mm (3.94 in)W × 224 mm (8.82 in)H × 35 mm (1.38 in)D, 600 g (21.2 oz), cord length: 3 m (9.84 ft)

Accessories

Instruction manual ×1

• Economical clamp sensors for waveform recording with Memory HiCorders

• Choose from up to six general-purpose ranges
