• HIOKI CT6841 / CT6843 AC/DC Current Sensor

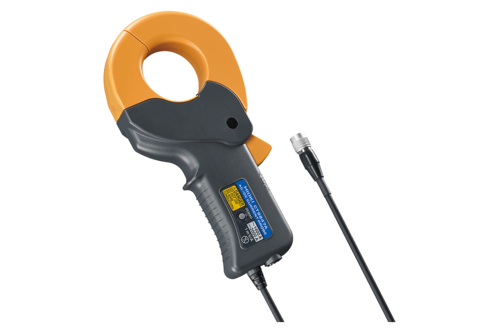

HIOKI CT6841 / CT6843 AC/DC Current Sensor

CT6841 20 A AC/DC, PL23 terminal
CT6841-05 20 A AC/DC, ME15W terminal
CT6843 200 A AC/DC, PL23 terminal
CT6843-05 200 A AC/DC, ME15W terminal
Model : HIOKI CT6841/CT6843

CT6841

CT6843

Rated current

20 A AC/DC

200 A AC/DC

Max. allowable input

40 A rms (requires derating)

400 A rms (requires derating)

Frequency characteristics

Amplitude: DC to 1 MHz

Phase: DC to 300 kHz

Amplitude: DC to 500 kHz

Phase: DC to 300 kHz

Amplitude and phase accuracy

DC ±0.3 % rdg. ±0.05 % f.s. (Phase: Not defined)

DC < f 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1°) Defined to 1 MHz

DC ±0.3 % rdg. ±0.02 % f.s. (Phase: Not defined)

DC< f 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1°) Defined to 500 kHz

Power consumption

5 VA max. (at 20 A/55 Hz, ±12 V power requirement)

6 VA max. (at 200 A/55 Hz, ±12 V power requirement)

Output voltage

0.1 V/A

(voltage output with the Sensor Unit, use with a device having a 1 MΩ input resistance or higher)

0.01 V/A

(voltage output with the Sensor Unit, use with a device having a 1 MΩ input resistance or higher)

Core diameter

φ 20 mm (0.79 in)

φ 20 mm (0.79 in)

Operating temperature, humidity

-40 °C to +85 °C (-40 °F to 185 °F), 80% RH or less (with no condensation)

-40 °C to +85 °C (-40 °F to 185 °F), 80% RH or less (with no condensation)

Power supply

±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC)

±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC)

Dimensions and mass

153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, 350 g (12.3 oz), cord length: 3 m (9.84 ft)

153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, 370 g (13.1 oz), cord length: 3 m (9.84 ft)

Accessories

Instruction manual ×1, Mark bands ×6, Carrying Case ×

Instruction manual ×1, Mark bands ×6, Carrying Case ×1

    Ideal for use in environmental testing with broad -40˚C to 85˚C temperature range

    High precision with a clamp-type design, ±0.3% amplitude accuracy, ±0.1° phase accuracy

    Wide-bandwidth DC to 1 MHz(CT6841)

    Single-handed operation and robust locking mechanism

    Reduced effects from magnetic fields, conductor position, and noise from nearby wires

    For EV/HEV battery charge and discharge efficiency measurement and inverter and power conditioner conversion efficiency evaluation

Related Products

HIOKI 9661 Current on Probe

HIOKI 9661 Current on Probe

HIOKI CT6877 AC/DC Current Sensor

HIOKI CT6877 AC/DC Current Sensor

HIOKI CT9557 Sensor Unit

HIOKI CT9557 Sensor Unit

HIOKI 9272 Current on Probe

HIOKI 9272 Current on Probe

HIOKI 9675 Clamp on Leak Sensor

HIOKI 9675 Clamp on Leak Sensor

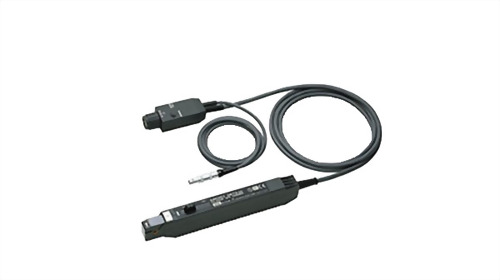

HIOKI 3273-50 Clamp on Probe
