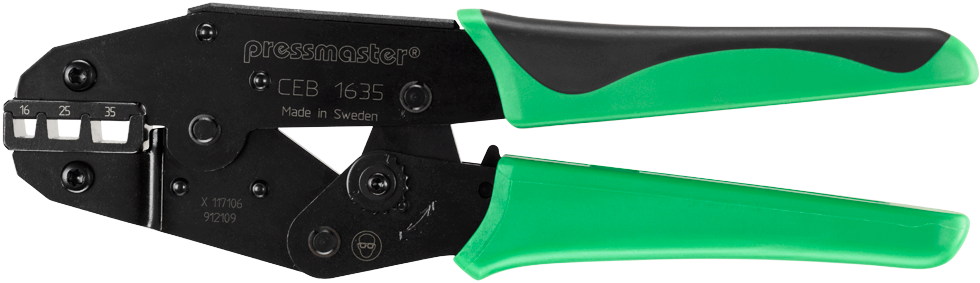

Pressmaster CEB 1635 Crimping tool
CEB-1635 is a crimping tool for endsleeves
according to DIN 46228, 16 - 35 mm²/AWG 6-2, side feeded, Trapez-Crimp.
|
Length |
230 mm/9.06" |
|
Width |
21 mm/0.83" |
|
Height |
70 mm/2.76" |
|
Weight |
540 gr/1.19 lb |
|
Wire size |
16-35 mm² / AWG 6- AWG 2 |
|
Crimp dimensions mm/mm² |
16 mm²/25 mm²/35 mmm² |
|
Crimp dimensions inch/AWG |
AWG 6/AWG 3/AWG 2 |
|
Connector |
Endsleeves |
|
Description |
For endsleve connectors, both uninsulated and insulated. |
|
Life span, cycles |
50,000 |
lHigh strength, through hardened alloy steel construction
lVersatile and easy to customize for right hand or left hand users
lFull cycle crimp mechanism to ensure consistent, reliable crimp
lRatchet release mechanism to clear miscrimps and obstructions
lPrecision eccentric adjustment for consistent performance and ability to calibrate
lEach tool has a unique serial number for traceability
