• FLIR ONE® Pro LT Professional-level Thermal Imaging for Your Smartphone

FLIR ONE® Pro LT Professional-level Thermal Imaging for Your Smartphone

Thermal image resolution of 4,800 pixels
Temperature measurements up to 120°C (248°F)
The thermal sensitivity needed to detect temperature differences down to 100 mK
Model : LT 專業熱影像鏡頭(不含手機)

Thermal pixel size

17 μm

Thermal resolution

4,800 pixels (80 × 60)

Thermal sensitivity

100 mK

Object temperature range

-20°C to 120°C (-4°F to 248°F)

Measurement Accuracy

±3°C (5.4°F) or ±5%, typical percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Operating temperature

0°C to 35°C (32°F to 95°F), battery charging 0°C to 30°C (32°F to 86°F)

Non-operating temperature

-20°C to 60°C (-4°F to 140°F)

Size (w × h × d)

68 X 34 X 14 mm

Weight (incl. battery)

36.5 g

Visual resolution

1440 X 1080

HFOV / VFOV

50° ±1°/ 43°±1°

Adjustable MSX distance

0.3 m – Infinity

Image presentation modes

Infrared, visual, MSX, gallery

VividlR

Yes

Palettes

Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava, and Wheel

Video and still image

Saved as 1440 × 1080

File formats

Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))

Mechanical shock

1.8 m (5.9 ft)

  • Thermal image resolution of 4,800 pixels
  • Temperature measurements up to 120°C (248°F)
  • The thermal sensitivity needed to detect temperature differences down to 100 mK
  • VividIRTM thermal resolution enhancement for improved sensitivity and image quality

Related Products

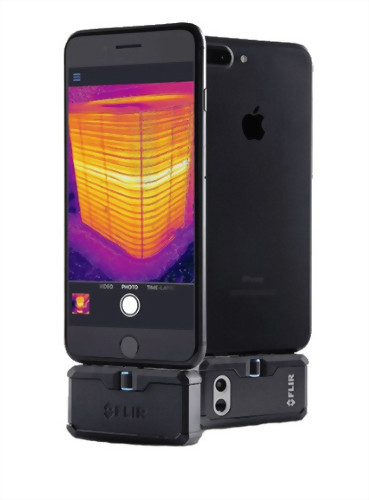

FLIR ONE® Pro Professional-level Thermal Imaging for Your Smartphone
