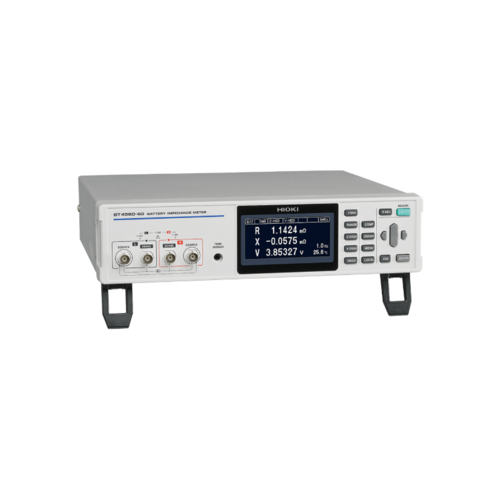

HIOKI BT4560 Battery Impedance Tester

• Low-frequency AC-IR measurement* : Measure the reaction resistance of a battery
*The BT4560 ensures battery cell quality by measuring internal impedance at a low frequency of 1 Hz or below
Model : HIOKI BT4560

Allowable input voltage

Up to 5 V

Measured information

Impedance, voltage, temperature

Impedance measurement

Parameters: R, X, Z, θ, Frequency: 0.1 Hz to 1050 Hz, Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ

Testing current: 3 mΩ range: 1.5 Arms, 10 mΩ range: 500 mArms, 100 mΩ range: 50 mArms

Voltage measurement

Measurement range: 5.00000 V (single range), Measurement time: 0.1 s (Fast) to 1.0 s (Slow)

Temperature measurement

Range: -10.0 °C to 60.0 °C, Measurement time: 2.3 s

Basic accuracy

Z: ±0.4% rdg. θ: ±0.1 °, V: ±0.0035% rdg. ±5 dgt. , Temperature: ±0.5 °C (at 10.0 to 40.0 °C)

Functions

Comparator, self-calibration, sample delay, average, contact check, measurement current error, and other

Interfaces

RS-232C/USB (virtual COM port) * Cannot be used simultaneously

EXT. I/O (NPN/PNP can be switched)

Power supply

100 to 240 V AC, 50/60 Hz, 80 VA max

Dimensions and mass

330 mm (12.99 in) W × 80 mm (3.15 in) H × 293 mm (11.54 in) D, 3.7 kg (130.5 oz)

Accessories

Power cord ×1, Instruction manual ×1, Zero-adjustment board ×1, USB cable (A-B type) ×1, CD-R (communication instruction manual, PC application software, USB driver) ×1


   Low-frequency AC-IR measurement* : Measure the reaction resistance of a battery

        *The BT4560 ensures battery cell quality by measuring internal impedance at a low frequency of 1 Hz or below

   Extremely reliable measurements for low-impedance batteries

        *The BT4560 uses a testing current of 1.5 A at the 3mΩ range, which improves the S/N ratio

   Circuit configuration highly tolerant of contact and wire resistance to provide stable measurements

   Voltage measurement function equivalent to 6-digit DMM (± 0.0035% rdg.)

Related Products

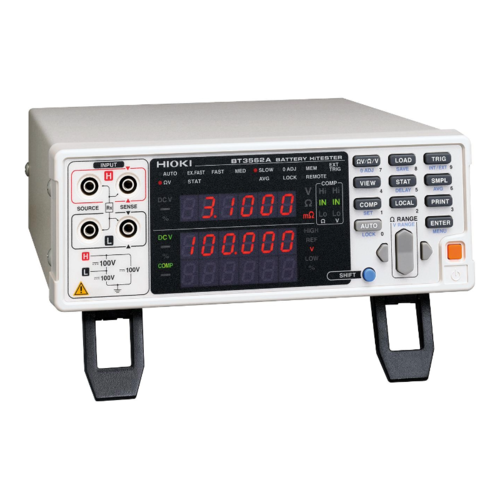

HIOKI BT3562 / BT3563 Battery Tester

HIOKI BT3562 / BT3563 Battery Tester

HIOKI BT3554 Battery Testers

HIOKI BT3554 Battery Testers

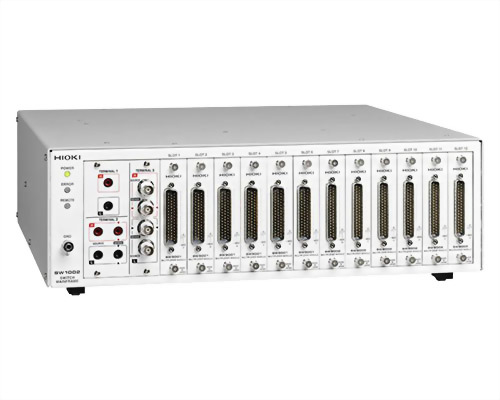

HIOKI SW1002 Switch Mainframe

HIOKI SW1002 Switch Mainframe

HIOKI BT3564 Battery Tester

HIOKI BT3564 Battery Tester

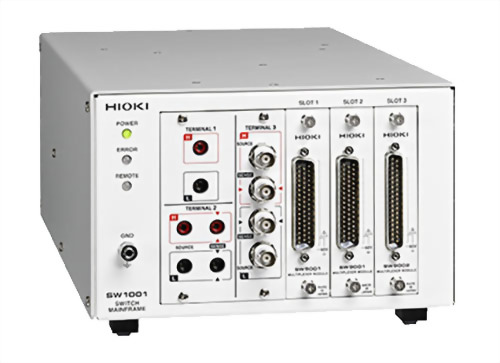

HIOKI SW1001 Switch Mainframe
