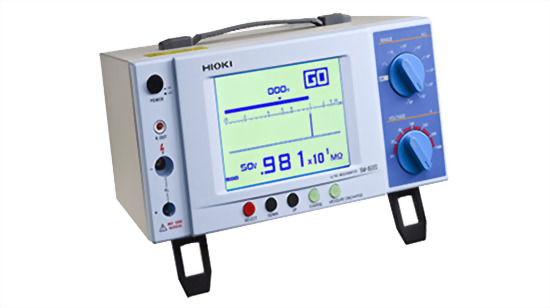

• HIOKI SM-8213, SM-8215, SM-8220 Super Megohmmeter

HIOKI SM-8213, SM-8215, SM-8220 Super Megohmmeter

• Ultra-megohm measurement
• Digital/analog display on LCD
• Compatible for measurement of several sample types with electrodes & other devices
Model : HIOKI SM-8213 / SM-8215 / SM-8220

Model

SM-8213

SM-8215

SM-8220

Measuring resistance range

5 V2.5×1041×1011 Ω

10 V5 ×1042 ×1011Ω

15 V7.5×1043×1011Ω

25 V1.25×1055×1011 Ω

50 V2.5×1051×1012 Ω

100 V5×1052×1012 Ω

5 V2.5×104 ×1011 Ω

10 V5×1042×1011 Ω

15 V7.5×1043×1011Ω

25 V1.25×1055 ×1011Ω

50 V2.5×1051 ×1012Ω

100 V5×1052×1012 Ω

250 V1.25×1065×1012Ω

500 V2.5×1061×1013Ω

1000 V5×1062×1013Ω

5 V2.5×1041×1011Ω

10 V5×1042×1014Ω

15 V7.5×1043×1011Ω

25 V1.25×1055×1014Ω

50 V2.5×1051 ×1015Ω

100 V5×1052×1015Ω

250 V1.25×1065×1015Ω

500 V2.5×1061 ×1016Ω

1000 V5×1062×1016Ω

Measuring accuracy

±10 % (within 10 times range of min. value on each range at 20°C ), but ± 20 % at 10^8 range of the SM-8220

±10 % (within 10 times range of min. value on each range at 20°C ), but ± 20 % at 10^8 range of the SM-8220

±10 % (within 10 times range of min. value on each range at 20°C ), but ± 20 % at 10^8 range of the SM-8220

Output current

-

Max. 50 mA

Max. 2 mA

Display

LCD (digital & analog display)

LCD (digital & analog display)

LCD (digital & analog display)

Standard function

Timer (1 to 999s), Comparator, Remote start, HV-EN (inter lock)

Timer (1 to 999s), Comparator, Remote start, HV-EN (inter lock)

Timer (1 to 999s), Comparator, Remote start, HV-EN (inter lock)

Interfaces

RS-232C, Comparator output (open-collector)

RS-232C, Comparator output (open-collector)

RS-232C, Comparator output (open-collector)

Power supply

Selectable 100, 120, 220 or 240 V AC ±10%, 50/60 Hz, 25 VA

Selectable 100, 120, 220 or 240 V AC ±10%, 50/60 Hz, 25 VA

Selectable 100, 120, 220 or 240 V AC ±10%, 50/60 Hz, 25 VA

Dimensions and mass

284 mm (11.18 in) W × 139 mm (5.47 in) H × 215 mm (8.46 in) D, 4.3 kg (151.7 oz)

284 mm (11.18 in) W × 139 mm (5.47 in) H × 215 mm (8.46 in) D, 4.3 kg (151.7 oz)

284 mm (11.18 in) W × 139 mm (5.47 in) H × 215 mm (8.46 in) D, 4.3 kg (151.7 oz)

Accessories

Instruction manual ×1, Power cord ×1, Measuring lead (black) 0GE00001 ×1, Measuring lead (red) 0GE00002 ×1, Short plug (internal) ×1

Instruction manual ×1, Power cord ×1, Measuring lead (black) 0GE00001 ×1, Measuring lead (red) 0GE00002 ×1, Short plug (internal) ×1

Instruction manual ×1, Power cord ×1, Measuring lead (black) 0GE00001 ×1, Measuring lead (red) 0GE00002 ×1, Short plug (internal) ×1

   Ultra-megohm measurement

   Digital/analog display on LCD

   Compatible for measurement of several sample types with electrodes & other devices

Related Products

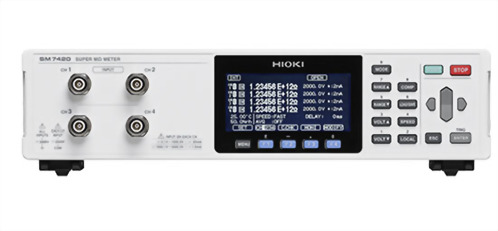

HIOKI SM7420 Super Megohmmeters
