• FLIR T500-series Professional Thermal Imaging Cameras

FLIR T500-series Professional Thermal Imaging Cameras

​Reduce the strain of full-day inspections with 180° rotating optical block for imaging targets overhead or below.
Model : T530 / T540

T530

T540

Accuracy

±2°C (±3.6°F) or ±2% of reading

±2°C (±3.6°F) or ±2% of reading

Color alarm (isotherm)

•Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation

•Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation

Difference Temperature

Yes

Yes

Display Technology

IPS

IPS

Focal Length

17 mm (0.67 in.), 24°

17 mm (0.67 in.), 24°

Housing material

PCABS with TPE, magnesium

PCABS with TPE, magnesium

IR Resolution

320 x 240 (76,800 pixels)

464 × 348 pixels

Laser Alignment

Position is automatically displayed on the infrared image

Position is automatically displayed on the infrared image

Laser Pointer

Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance

Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance

Object Temperature Range

-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) Optional Calibration: 300°C to 1200°C (572°F to 2192°F)

-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) There are no optional ranges

Packaging Size

500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)

500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)

Programmable Buttons

2

2

Resolution

640 × 480 pixels (VGA)

464 × 348 pixels (VGA)

Screening

0.5°C (0.9°F) accuracy at 37°C (98.6°F) with reference

0.5°C (0.9°F) accuracy at 37°C (98.6°F) with reference

Size (L x W x H)

•Lens horisontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)

•Lens horisontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)

Thermal Sensitivity/NETD

<40 mK, 24° @ +30°C (+86°F)

<40 mK, 24° @ +30°C (+86°F)

Warranty

http://www.flir.com/warranty/

http://www.flir.com/warranty/

Text

Predefined list or touchscreen keyboard

Predefined list or touchscreen keyboard

Time Lapse [Infrared]

10 sec to 24 hrs

10 sec to 24 hrs

Voice

60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

Weight & Dimensions (without lens)

1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in)

1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in)



  • Reduce the strain of full-day inspections with 180° rotating optical block for imaging targets overhead or below.
  • Determine accessibility of components for repair at the touch of a button by activating on-screen laser distance measurement.
  • See problems and make decisions easily thanks to scratch-resistant 4” LCD display that’s 33% brighter and 4x the resolution of comparable cameras.

Related Products

FLIR T1K HD Thermal Imaging camera

FLIR T1K HD Thermal Imaging camera

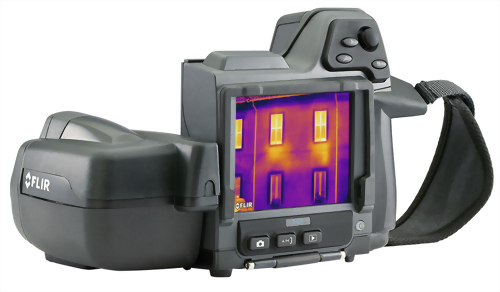

FLIR T400 Series High-end Infrared Thermal Imager
