• HIOKI SW1001 Switch Mainframe

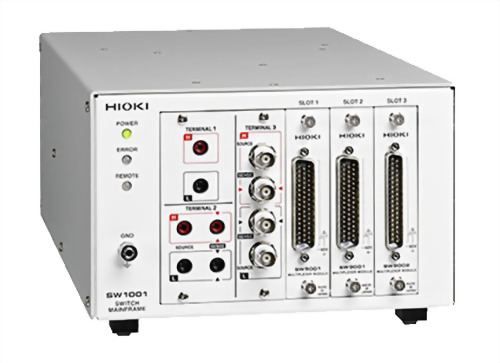

HIOKI SW1001 Switch Mainframe

• Switch between voltmeter and battery tester while testing
• SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair)
• Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s.*)
Model : HIOKI SW1001

Slots

3 slots

Supported modules

MULTIPLEXER MODULE SW9001 (2-wire/4-wire)

MULTIPLEXER MODULE SW9002 (4-terminal pair)

Connectible instruments

Max. 2 units

2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1

Max. input voltage

60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC

Communication I/F

LAN, USB, RS-232C (for host, for measurement instruments)

Functions

Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching

Power supply

100 to 240 V AC / 30 VA (50/60 Hz)

Dimensions and mass

215 mm (8.46 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 3.7 kg (130.5 oz)

Accessories

Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1


   Switch between voltmeter and battery tester while testing

   SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair)

   Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s.*)

*For BT4560 100 mΩ range, R measurements, and a measurement frequency of 1 kHz

   For OCV measurement, internal resistance measurement, and external potential measurement of battery cells

   Measure battery modules up to 60 V DC
