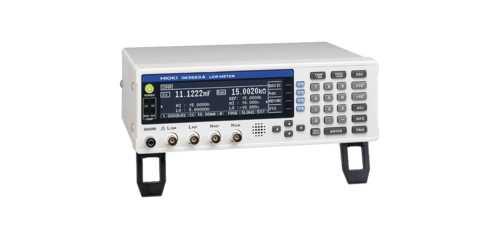

Measurement modes

LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)

Measurement parameters

Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε

Measurement range

100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)

Displayable range

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :

± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only

θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)

Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%)

Basic accuracy

Z : ±0.05% rdg. θ: ±0.03°

Measurement frequency

40 Hz to 200 kHz (5 digits setting resolution)

Measurement signal level

V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps

CC mode: 10 μA to 50 mArms, 10 μArms steps

Output impedance

100 Ω

Display

Monochrome LCD

Measurement time

2 ms (1 kHz, FAST, representative value)

Functions

Comparator, BIN measurement (classify function), Panel loading/saving, Memory function

Interfaces

EXT I/O (handler), USB communication (high-speed)

Optional: Choose 1 from RS-232C, GP-IB, or LAN

Power supply

100 to 240 V AC, 50/60 Hz, 50 VA max

Dimensions and mass

260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz)

Accessories

Power cord × 1 , Instruction manual × 1, CD-R (Includes PC commands and sample software) × 1
