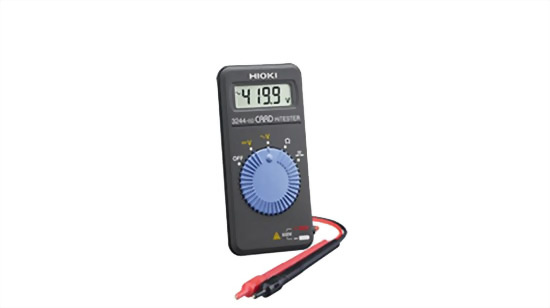

HIOKI 3244-60 Pocket Digital Multimeter
• Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight
• Full auto-ranging function and automatic power saving function
• Overload protection to 500 V at resistance or continuity functions
|
DC Voltage range |
419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt. |
|
AC Voltage range |
4.199 V to 500 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified) |
|
Resistance range |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. |
|
Continuity buzzer |
Detection level 50 Ω ±40 Ω, Diode check: Not available |
|
Auto power save |
Available (cancel selectable) |
|
Display |
Digital LCD, max. 4199 digits |
|
Sampling rate |
2.5 times/sec |
|
Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours |
|
Dimensions and mass |
55 mm (2.17 in) W × 109 mm (4.29 in) H × 9.5 mm (0.37 in) D, 60 g (2.1 oz) |
|
Accessories |
Instruction manual ×1, Carrying case ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1) |
• Better contact test leads with 15 mm gold-plated tip pin
• Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight
• Full auto-ranging function and automatic power saving function
• Overload protection to 500 V at resistance or continuity functions
