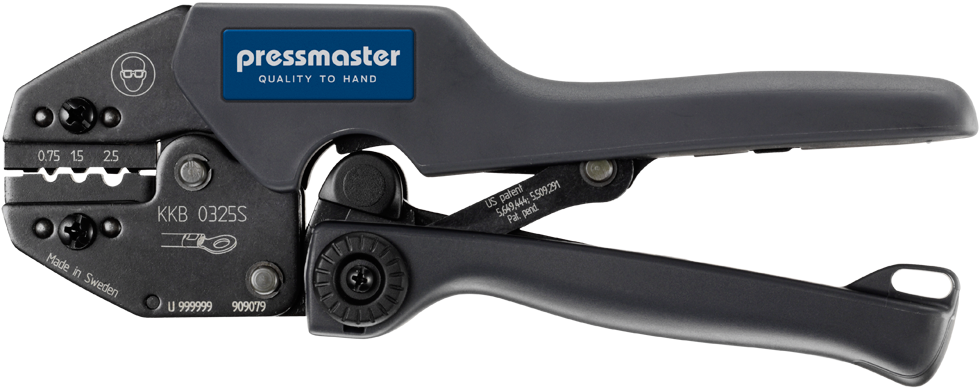

Pressmaster KKB-0325S Crimping Tool
KKB-0325S is a crimping tool for non
insulated connectors, 0.5 - 2.5 mm²/AWG 22-14, Indent-Crimp.
|
Length |
204 mm/8.03" |
|
Width |
22 mm/0.87" |
|
Height |
76 mm/2.99" |
|
Weight |
500 gr/1.1 lb |
|
Wire size |
0.35-2.5 mm² / AWG 22- AWG14 |
|
Crimp dimensions mm/ mm² |
0,35 - 0,75 mm²/1,5 mm²/2,5 mm² |
|
Crimp dimensions inch/AWG |
AWG 22 - 20/AWG 16/AWG 14 |
|
Connector |
Uninsulated connectors |
|
Description |
For uninsulated copper tube and copper sheet connectors. |
|
Life span, cycles |
50,000 |
lHigh strength, through hardened alloy steel construction
lUnique mechanism significantly reduces hand force requirement over competing crimping tools
lVersatile and easy to customize for right hand or left hand users.
lNon-slip pad holds tool in place when leveraging on a work surface
lFull cycle crimp mechanism to ensure consistent, reliable crimp
lRatchet release mechanism to clear miscrimps and obstructions
lPrecision eccentric adjustment for consistent performance and ability to calibrate
lHole in handle allows attachment of safety strap
lEach tool has a unique serial number for traceability
