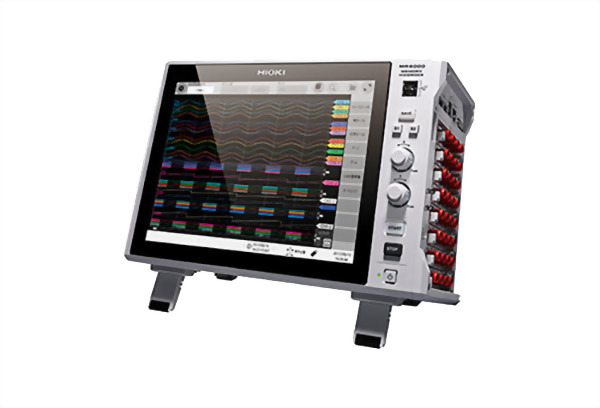

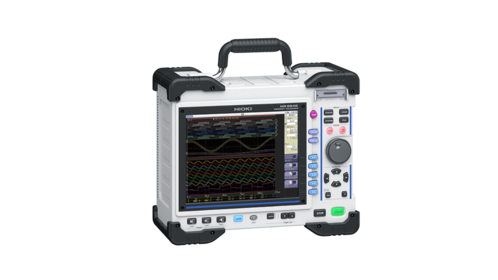

HIOKI MR6000 Memory Recorder
MR6000-01 Built-in real-time waveform calculation and other functionality
|
|
MR6000 |
MR6000-01 |
|
Additional function |
N/A |
Real-time waveform calculation, Digital Filter calculation |
|
Number of input units |
Max. 8 units |
Max. 8 units |
|
Number of channels |
Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973) |
Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973) |
|
Measurement ranges (20 div full-scale) |
10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range |
10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range |
|
Max. allowable input |
400 V DC (when using the U8976), 200 V DC (when using the U8975) |
400 V DC (when using the U8976), 200 V DC (when using the U8975) |
|
Frequency characteristics |
DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975) |
DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975) |
|
Max. sampling rate |
200 MS/s, all channnels simultaneously (when using the U8976) External sampling: 10 MS/s |
200 MS/s, all channnels simultaneously (when using the U8976) External sampling: 10 MS/s |
|
Recording methods |
Normal: Normal waveform recording Envelope: Record maximum and minimum values every fixed period |
Normal: Normal waveform recording Envelope: Record maximum and minimum values every fixed period |
|
Storage memory capacity |
1 G-words |
1 G-words |
|
Removable storage |
SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1 FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI. |
SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1 FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI. |
|
Display |
12.1 inch XGA-TFT color LCD (1024 × 768 dots) |
12.1 inch XGA-TFT color LCD (1024 × 768 dots) |
|
External interfaces |
LAN, USB, SD, SATA, Monitor output |
LAN, USB, SD, SATA, Monitor output |
|
Power supply |
100 to 240 V AC (50/60 Hz) (300 VA max.) |
100 to 240 V AC (50/60 Hz) (300 VA max.) |
|
Dimensions and mass |
353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only) |
353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only) |
|
Accessories |
Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only) |
Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only) |
• High-speed 200 MS/s isolated testing (with High Speed Analog Unit U8976Ax8)
• Simultaneously measure up to 32 analog channels (with 4ch Analog Unit U8975x8)
• Real-time saving of data of all 32 ch at 1 MS/s (with SSD Unit U8332)
• Highly-responsive touchscreen
• Memory Concierge: Easily search for the waveform you want to see with the waveform search function
• Faster save times (1/10th the time required by legacy models)
• Real-time digital filter calculation
