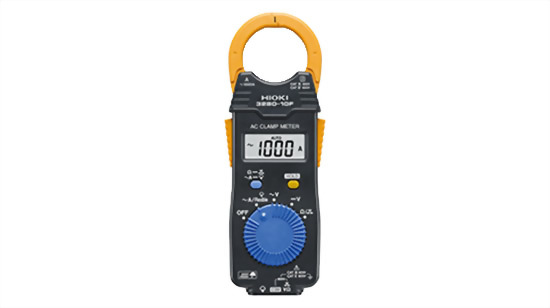

HIOKI 3280-10F AC Clamp Meter
• Expanded -25 °C to 65 °C operating temperature range
• Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
• Drop proof design withstands drop from a height of 1 meter
|
AC Current range |
41.99 to 1000 A, 3 ranges (50 to 60 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|
DC Voltage range |
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
|
AC Voltage range |
4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: ±1.8 % rdg. ±7 dgt. |
|
Crest factor |
N/A |
|
Resistance range |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
|
Other functions |
Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
|
Display |
LCD, max. 4199 dgt., Display refresh rate: 400 ms |
|
Environmental protection |
IP40 dustproof and waterproof |
|
Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
|
Core jaw dia. |
φ 33 mm (1.30 in) |
|
Dimensions and mass |
57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
|
Accessories |
CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1 |
• Measure the fundamental waveform component using the average rectified method
• Expanded -25 °C to 65 °C operating temperature range
• Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
• Drop proof design withstands drop from a height of 1 meter
