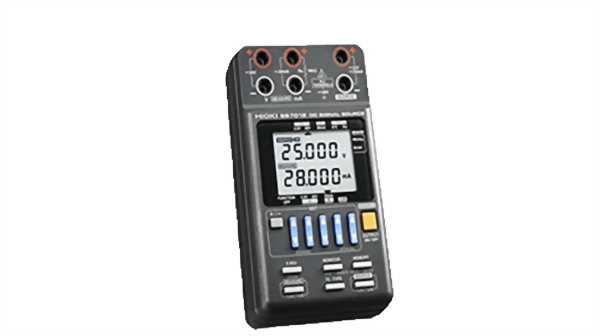

HIOKI SS7012 Signal Generator and Calibrator
• For instrumentation systems (4 - 20 mA) and loop testing
• Check temperature control equipment and electric distribution
|
Circuit method |
Bipolar sink and source |
|
Constant voltage |
2.5 V: 0 to ±2.5000 V (±0.03 % of setting ±300 μV, 100 μV resolution) 25 V: 0 to ±25.000 V (±0.03 % of setting ±3 mV, 1 mV resolution) |
|
Constant current |
25 mA: 0 to ±25.000 mA (±0.03 % of setting ±3 μA, 1 μA resolution) |
|
Thermoelectric power generation |
K: at TC: 0 ˚C, -174.0 to 1372.0 ˚C (±0.05 % of setting ±0.5 ˚C, 0.1 ˚C resolution), Other types: E, J, T, R, S, B, N selectable |
|
Thermoelectric power generation |
K: at TC: RJ, -174.0 to 1372.0 ˚C (±0.05 % of setting ±1.0 ˚C, 0.1 ˚C resolution), Other types: E, J, T, R, S, B, N selectable |
|
Standard resistance (Rs) |
100 Ω (±0.2 Ω) |
|
Automatic generation |
Number of memory steps: 20, Interval time: 1 to 99 sec (at CV, CC, TC mode) |
• Improve stability and reduce calibration costs compared with the previous HIOKI model
• For instrumentation systems (4 - 20 mA) and loop testing
• Check temperature control equipment and electric distribution
• 8 types of thermocouples to test thermoelectric power generation
• Ideal for electrical device evaluating and routine maintenance of production equipment such as calibrators
• Use the max. 25 mA DC sink as an electric load
