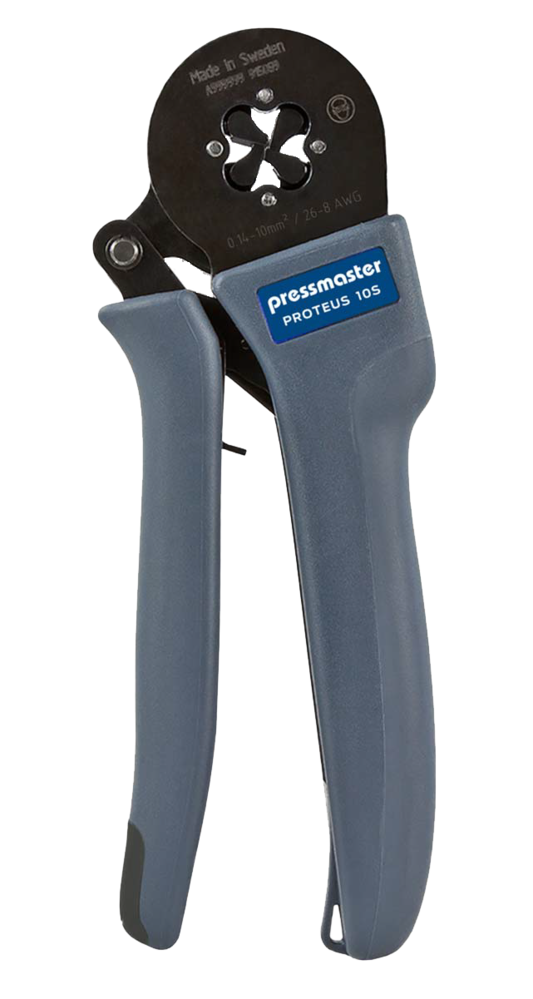

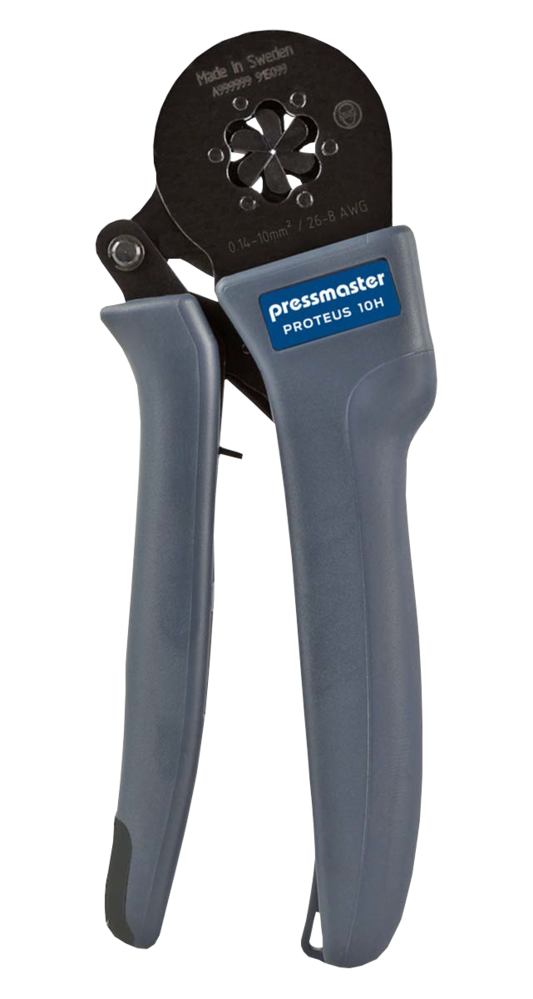

Pressmaster Proteus 10S &10H
Lightweight, compact, comfortable and
self-adjusting for crimping ferrules/wire end sleeves. Crimp profile: Square
and Hex
|
|
Proteus 10S |
Proteus 10H |
|
Connectors |
Insulated and non-insulated ferrules/wire end sleeves |
Insulated and non-insulated ferrules/wire end sleeves |
|
Adjustment |
No |
No |
|
Capacity |
0.14–10.0 mm²/AWG 26–8 |
0.14–10.0 mm²/AWG26–8 |
|
Crimp profile |
Square |
Hex |
|
Crimp length |
Up to 12 mm/0.47 inch |
Up to 12 mm/0.47 inch |
|
Lifespan |
> 50,000cycles |
> 50,000cycles |
|
Length Width Height Handle spread (closed) Handle spread (open) |
176 mm/6.93 inch 26 mm/1.02inch 62 mm/2.44inch 46 mm/1.81inch 142mm/5.59inch |
176 mm/6.93 inch 26 mm/1.02inch 62 mm/2.44inch 46 mm/1.81inch 142 mm/5.59inch |
|
Weight |
362 g/0.8lbs |
371 g/0.81 lbs |
|
Article number |
4300-4661 |
4300-4662 |
