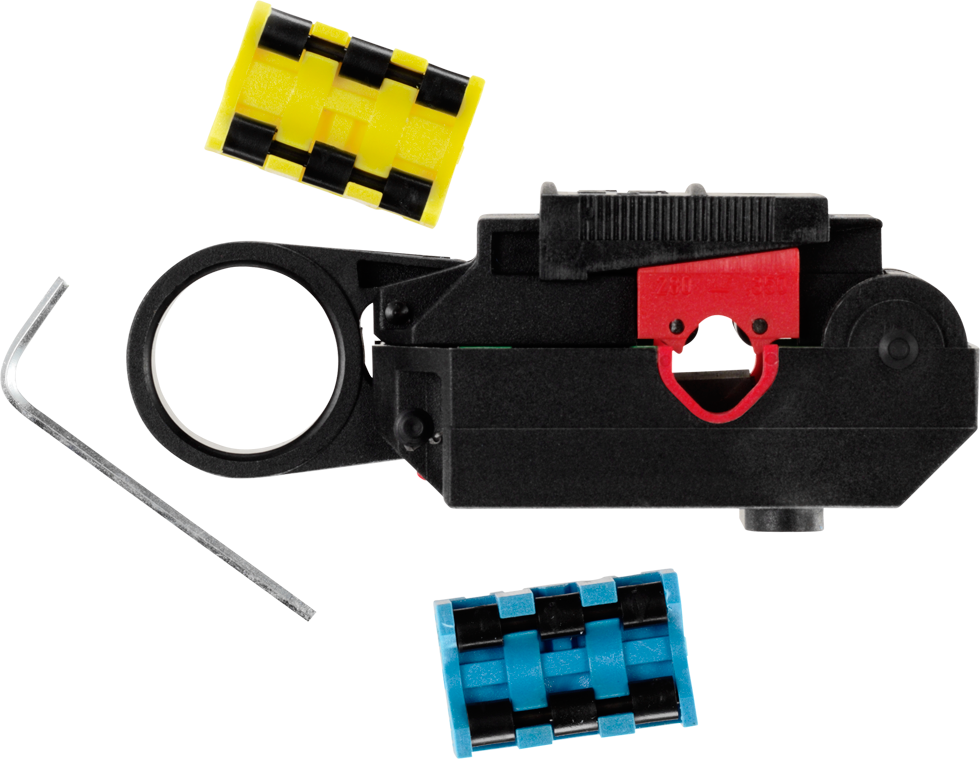

Pressmaster Maxi Corex Stripping Tool
Maxi Corex is a stripping tool for coaxial
cable, Ø 7.0- 15.0 mm/0.28-0.55", 3 blade, stripping length 9.5 + 3.2 mm/0.374
+ 0.126".
|
Length |
106 mm/4.17" |
|
Width |
36 mm/1.42" |
|
Height |
43 mm/1.69" |
|
Weight |
81 gr/0.18 lb |
|
Wire size |
7-15 mm / 0.28'-0.55' |
|
Stripping dimensions mm/mm² |
adjustable/setting/9.5 mm/3.2 mm |
|
Stripping dimensions inch/AWG |
adjustable/setting/0.374/0.126 |
|
Cable |
Coaxial cable |
|
Description: |
Coaxial cable stripper Ø 7.0-15.0 mm/0.28-0.55 inch |
|
Life span, cycles |
1,000 strips per cassette |
lFlexible. Strips more large coaxial cables sizes (Ø7.0-15.0 mm/0.28-0.55"") than any other comparable stripper.
lAccurate. Strips most cables with machine-like accuracy. Standard cassettes produce the strip lengths required for the majority of connectors. Custom cassettes can be made to order.
lUnique. Setting gauge gives simple adjustment of blade height for most common cable types.
lFast. Simply insert the cables, close and rotate to strip.
lLong-lasting. Steel blades tested for more than 1,000 strips per cassette.
lEconomical. High productivity, long life and great versatility make Corex a best buy for anyone who needs to strip more than one cable size.
lEach tool is delivered with one knife cassette, three v-blocks and one allen-key
lBoth cassettes are available as separate items.
