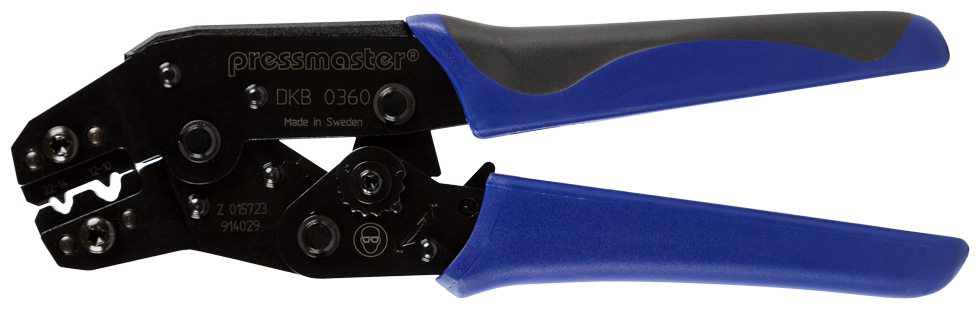

Pressmaster DKB 0360 Crimping tool
DKB-0360 is a crimping tool for non-insulated
connectors, 0.35 - 6 mm²/AWG 22 - 10, Indent-Crimp.
|
Length |
198 mm/7.8" |
|
Width |
18 mm/0.71" |
|
Height |
59 mm/2.32" |
|
Weight |
350 gr/0.77 lb |
|
Wire size |
0.35-6 mm² / AWG 22- AWG 10 |
|
Crimp dimensions mm/mm² |
0.35 - 2.5 mm²/4 - 6 mm² |
|
Crimp dimensions inch/AWG |
AWG 22 - 14/AWG 12 - 10 |
|
Connector |
Uninsulated connectors |
|
Description |
For uninsulated copper tube and copper sheet connectors. |
|
Life span, cycles |
50,000 |
lHigh strength, through hardened alloy steel construction
lVersatile and easy to customize for right hand or left hand users
lFull cycle crimp mechanism to ensure consistent, reliable crimp
lRatchet release mechanism to clear miscrimps and obstructions
lPrecision eccentric adjustment for consistent performance and ability to calibrate
lEach tool has a unique serial number for traceability
