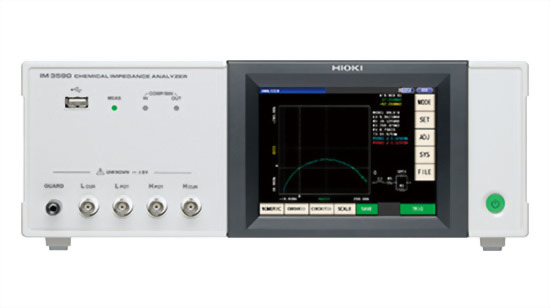

Measurement modes

LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)

Measurement parameters

Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, T, σ (conductivity), ε (dielectric constant)

Measurement range

100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)

Display range

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε :

±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y only

θ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999)

Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%)

T : -10.0°C to 99.9°C

σ, ε :±(0.00000f [unit] to 999.999G [unit]

Basic accuracy

Z: ±0.05% rdg. θ: ±0.03°

Measurement frequency

1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)

Measurement signal level

Normal mode:

V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps

CC mode: 10 μA to 50 mArms, 10 μArms steps

Low impedance high accuracy mode:

V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps

CC mode:10 μA to 100 mArms, 10 μArms steps

Output impedance

Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω

Display

5.7-inch color TFT, display can be set to ON/OFF

Measurement time

2 ms (1 kHz, FAST, display OFF, representative value)

Functions

DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function

Interfaces

EXT I/O (Handler), USB communication (high-speed), USB memory

Optional: Choose 1 from RS-232C, GP-IB, or LAN

Power supply

100 to 240 V AC, 50/60 Hz, 50 VA max.

Dimensions and mass

330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)

Accessories

Power cord ×1, Instruction manual ×1, CD-R (Communication instruction manual and sample software [Communications control, accuracy calculation, and screen capture functionality] ) ×1
