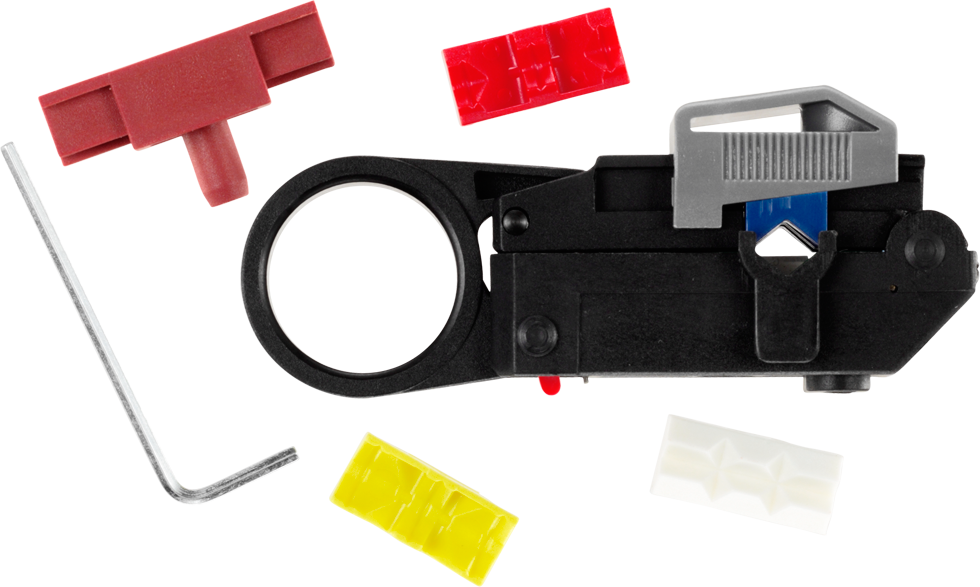

Pressmaster Corex CX 2xx Stripping Tool
Corex CX 2xx is a stripping tool for
coaxial cable, Ø 2,5-7,6 mm/0.1-0.3", 2 level stripping.
|
Length |
90 mm/3.54" |
|
Width |
25.5 mm/1" |
|
Height |
37.5 mm/1.48" |
|
Weight |
40 gr/0.09 lb |
|
Wire size |
2.5-7.6 mm / 0.1'-0.3' |
|
Stripping dimensions mm/mm² |
adjustable/setting |
|
Stripping dimensions inch/AWG |
adjustable/setting |
|
Cable |
Coaxial cable |
|
Description |
Coaxial cable stripper Ø 2.5-7.6 mm/0.1-0.3 |
|
Life span, cycles |
1,000 strips per cassette |
|
|
Cassette Colour |
Blade Spacing(B) mm/“ |
|
CX 202 |
red |
6.0/0.24 |
|
CX 207 |
blue |
6.8/0.27 |
|
CX 203 |
orange |
9.2/0.36 |
|
CX 204 |
yellow |
12.0/0.47 |
|
* adjustable |
||
Flexible. Strips more coaxial cable sizes
(Ø 2.5-7.6 mm/0.1-0.3") than any other comparable stripper.
Accurate. Strips most cables with
machine-like accuracy. Standard cassettes produce the strip lengths required
for the majority of connectors. Custom cassettes can be made to order.
Unique setting gauge gives simple
adjustment of blade height for most common cable types.
Fast. Simply insert the cables, close and
rotate to strip.
Long-lasting. Steel blades tested for more
than 1,000 strips per cassette.
Economical. High productivity, long life
and great versatility make Corex a best buy for anyone who
needs to strip more than one cable size
Each tool is delivered with one knife
cassette, four v-blocks, gauge and allen-key
All four cassettes are available as
separate items.
