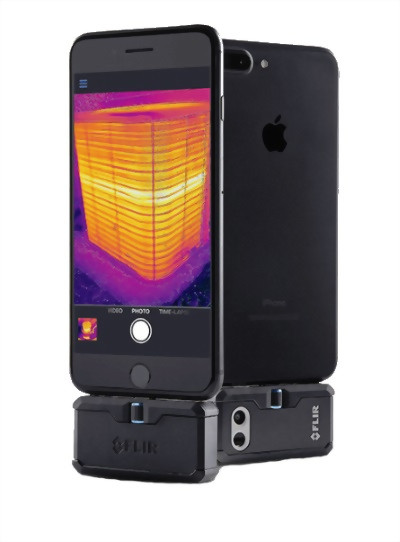

FLIR ONE® Pro Professional-level Thermal Imaging for Your Smartphone
Maximum temperature measurements up to 400°C (752°F)
The thermal sensitivity needed to detect temperature differences down to 70 mK
|
Thermal pixel size |
12 µm |
|
Thermal resolution |
19,200 pixels (160 × 120) |
|
Thermal sensitivity |
70 mK |
|
Object temperature range |
-20°C to 400°C (-4°F to 752°F) |
|
Measurement Accuracy |
±3°C (5.4°F) or ±5%, typical percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
|
Operating temperature |
0°C to 35°C (32°F to 95°F), battery charging 0°C to 30°C (32°F to 86°F) |
|
Non-operating temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Size (w × h × d) |
68 X 34 X 14 mm |
|
Weight (incl. battery) |
36.5 g |
|
Visual resolution |
1440 X 1080 |
|
HFOV / VFOV |
50° ±1°/ 43°±1° |
|
Adjustable MSX distance |
0.3 m – Infinity |
|
Image presentation modes |
Infrared, visual, MSX, gallery |
|
VividlR |
Yes |
|
Palettes |
Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava, and Wheel |
|
Video and still image |
Saved as 1440 × 1080 |
|
File formats |
Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)) |
|
Mechanical shock |
1.8 m (5.9 ft) |
- The highest thermal image resolution at 19,200 pixels
- Maximum temperature measurements up to 400°C (752°F)
- The thermal sensitivity needed to detect temperature differences down to 70 mK
- VividIR™ thermal resolution enhancement for improved sensitivity and image quality
