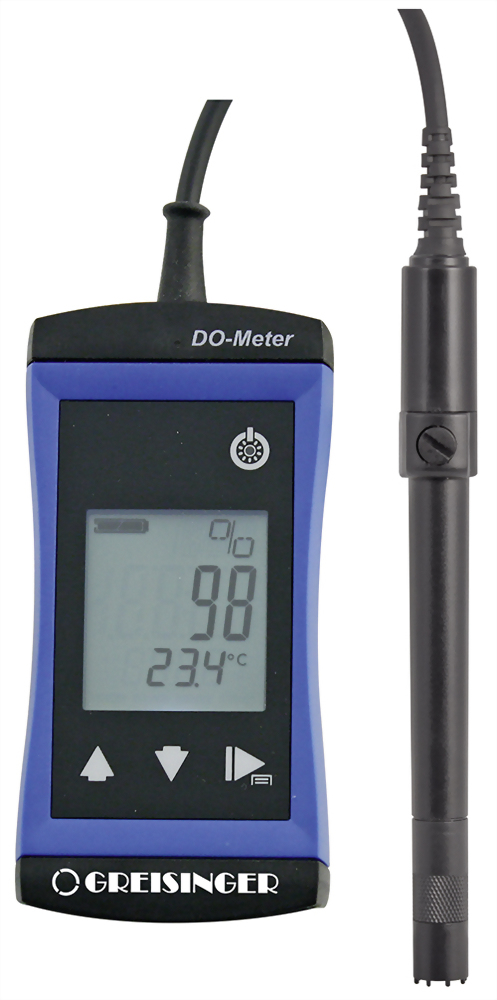

Measuring range / Resolution:

0.0 ... 20.0 mg / l (or ppm) O 2 concentration

0 ... 200% O 2 saturation

Accuracy

Oxygen:

± 1.5% of mv ± 0.2 mg / l or ± 1.5% of mv ± 2% O 2 saturation

temperature:

± 0.3 ° C

sensor / measuring inputs:

Galvanic sensor (active membrane type), KOH electrolyte 2 m cable, permanently connected to the device, with integrated temperature sensor

response time T 95 :

10 s at nominal temperature

operating pressure:

max. 3 bar (~ 30 m water depth)

sensor range of application:

0 ... 40 ° C

Scope of supply:

Device, sensor, GWOK 02 spare membrane cap and KOH electrolyte save 100, 2 x battery, manual

lModern and functional housing

l3-line display / overhead display at the push of a button

lBacklighting

lWaterproof (IP65 / 67)

lDurable, long life battery

lIncluding galvanic oxygen sensor

lEasy calibration to air at the push of a button
