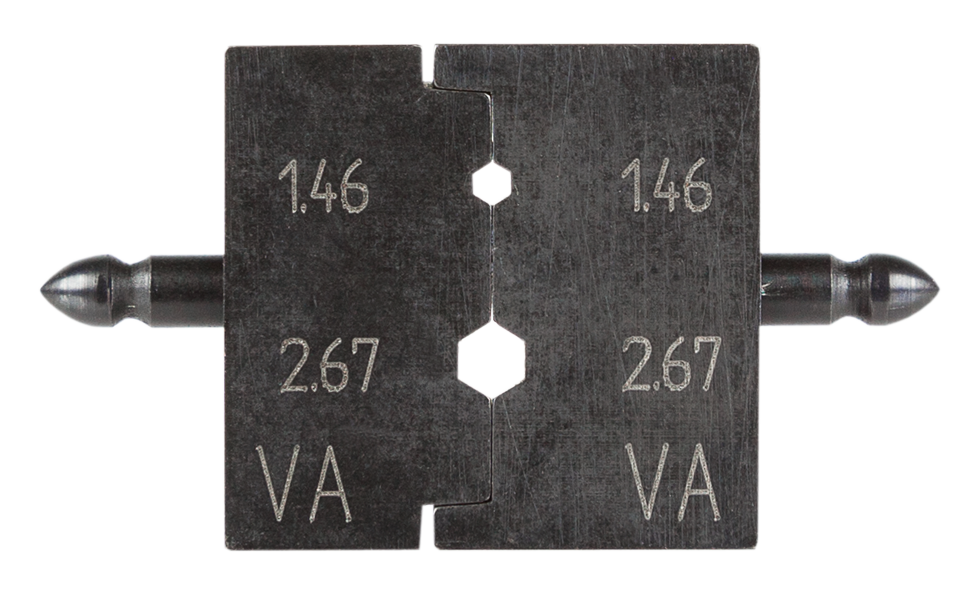

Pressmaster PCC 5310/01 VA
PCC-5310 Die set with nest 1.46 mm, 2.67
mm/.057", .105", HEX-Crimp. This is one of the interchangeable crimp
die sets for the PCC-5310 frame. The user can cover several coaxial connectors
in just one tool frame.
|
Length |
38 mm/1.5" |
|
Width |
21 mm/0.83" |
|
Height |
8 mm/0.31" |
|
Weight |
30 gr/0.07 lb |
|
Crimp dimensions mm/mm² |
1.46 mm HEX/2.67 mm HEX |
|
Crimp dimensions inch/AWG |
.057/.105 |
|
Connector |
Coaxial connector |
|
Description |
For type BT connectors on RG 178. |
|
Life span, cycles |
50,000 |
|
Cables |
RG178B/U |
lHigh strength, through hardened alloy steel construction
lFull cycle crimp mechanism to ensure consistent, reliable crimp
lRatchet release mechanism to clear miscrimps and obstructions
lPrecision eccentric adjustment for consistent performance and ability to calibrate
lEach tool has a unique serial number for traceability
