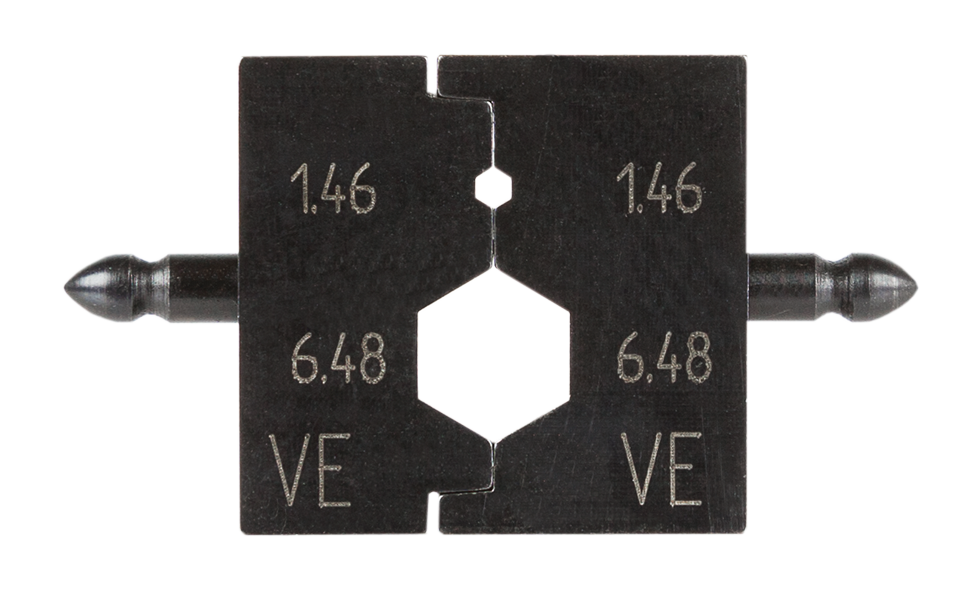

Pressmaster PCC 5310/05 VE
PCC-5310 Die set with nest 1.46 mm, 6.48
mm/.057", .255", HEX-Crimp. This is one of the interchangeable crimp
die sets for the PCC-5310 frame. The user can cover several coaxial connectors
in just one tool frame.
|
Length |
38 mm/1.5" |
|
Width |
21 mm/0.83" |
|
Height |
8 mm/0.31" |
|
Weight |
30 gr/0.07 lb |
|
Crimp dimensions mm/mm² |
1.46 mm HEX/6.48 mm HEX |
|
Crimp dimensions inch/AWG |
0.057/0.255 |
|
Connector |
Coaxial connector |
|
Description |
For type BT connectors. |
|
Life span, cycles |
50,000 |
|
Cables |
RG108A/U, RG210/U, RG59B/U, RG62A/U, RG62B/U, RG71B/U |
l High strength, through hardened alloy steel construction
l Full cycle crimp mechanism to ensure consistent, reliable crimp
l Ratchet release mechanism to clear miscrimps and obstructions
l Precision eccentric adjustment for consistent performance and ability to calibrate
l Each tool has a unique serial number for traceability
