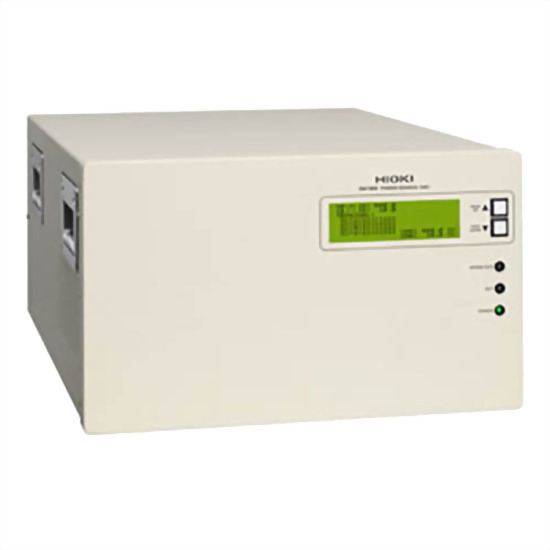

HIOKI SM7860 Power Source Unit
• 8-channels or 16-channels dual-line output voltage setting
• Positive and negative polarities required for the MLCC test line included in a single unit
|
Supported device |
Super MΩ HiTester SM7810 Object to which voltage is applied: MLCC (the Multilayer Ceramic Capacitor) |
|
Generation accuracy |
Output voltage accuracy: ±2% of set value ± 0.5 V (with no load) Inter-channel error: ± 0.01 V or less (between outputs on the same line with no load) |
|
Interfaces |
GP-IB, RS-232C, EXT I/O |
|
Power supply |
SM7860-51 to -58: 100 V AC, SM7860-61 to -68: 220 V AC, 50/60 Hz, 860 VA |
|
Dimensions and mass |
425 mm (16.73 in) W × 249 mm (9.80 in) H × 581 mm (22.87 in) D, 47 kg (1657.9 oz) [SM7860-57 / -67] : 34 kg (1199.3 oz) |
|
Accessories |
Power cable ×1, Instruction manual ×1, Operating precautions ×1 |
• Support for multi-channel systems up to 32-channel output
• 8-channels or 16-channels dual-line output voltage setting
• Positive and negative polarities required for the MLCC test line included in a single unit
• Output ON/OFF and current limitation can be performed for each channel
• Support for the discharge of the charge capacitor
• Output voltage of 1 kV is available
• Large current output of 50 mA */channel allows for reducing the number of backup charges
* Output voltage of 1 kV is limited to 10 mA/channel
