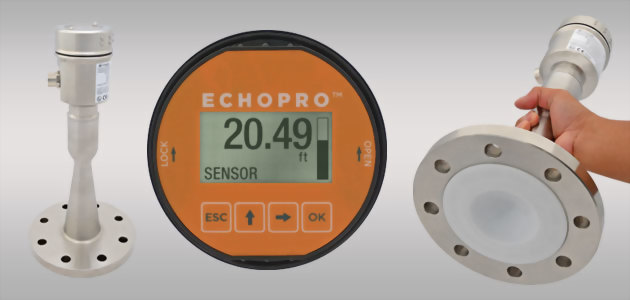

FLOWLINE LR21 Radar Liquid Level Sensor
FLOWLINE LR21 Radar Liquid Level Sensor
Model :
LR21
FLOWLINE LR21 Radar Liquid Level Sensor
|
Classification |
Intrinsically safe |
|
Media |
Liquids |
|
Application |
Storage |
|
Process condition |
Difficult |
|
Tank location and material |
Above or below grade in any tank material |
|
Corrosive |
Yes |
|
Range |
65.6' (20m) |
|
Output |
4-20 mA |
|
Installation |
Flange |
|
Mount |
3", 4" ANSI |
|
Max. temperature |
302º F. (150º C.) |
|
Max. pressure |
72 PSI (5 bar) |
|
Ant. material |
316L & PTFE |
