• FLOWLINE LR31 Radar Liquid Level Sensor

FLOWLINE LR31 Radar Liquid Level Sensor

​Rugged IP68 sensor enclosure with 304 SS mounting bracket
Configuration via push button display or HART communicator
26 GHz. pulse radar is unaffected by sump process conditions
Model : LR31

Classification

Intrinsically safe

Media

Liquids

Application

Lift station

Process condition

Difficult

Tank location and material

Below grade in any tank material

Corrosive

Diluted

Range

98.4' (30m)

Output

4-20 mA

Installation

Bracket

Mount

Bolt

Max. temperature

212º F. (100º C.)

Max. pressure

Atmospheric

Ant. material

Nylon


  • Rugged IP68 sensor enclosure with 304 SS mounting bracket
  • Configuration via push button display or HART communicator
  • 26 GHz. pulse radar is unaffected by sump process conditions
  • Wall mounted display with windowed enclosure rated IP67
  • 12” (30cm) dead band enables utilization of the entire sump
  • LCD displays level in feet or meters with percent of span bar
  • Optional display mode indicates the echo signal return curve
  • Auto-temperature compensation for accurate measurement
  • Self diagnostics with selectable fail-safe signal outputs
  • Recognition, storage and rejection of false echo signal returns

Related Products

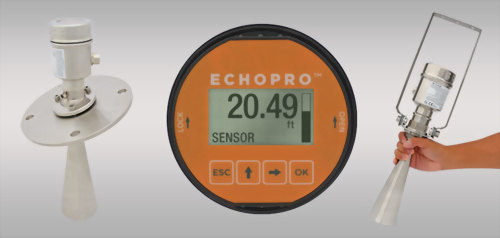

FLOWLINE LR41 Radar Solids Level Sensor

FLOWLINE LR41 Radar Solids Level Sensor

FLOWLINE LR16 Radar Liquid Level Sensor

FLOWLINE LR16 Radar Liquid Level Sensor

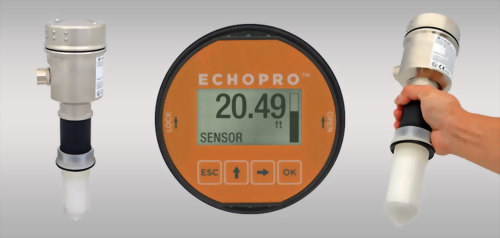

FLOWLINE LR11 Radar Liquid Level Sensor

FLOWLINE LR11 Radar Liquid Level Sensor

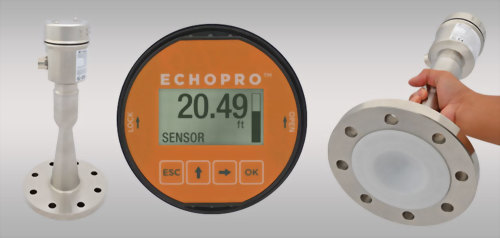

FLOWLINE LR21 Radar Liquid Level Sensor

FLOWLINE LR21 Radar Liquid Level Sensor

FLOWLINE LR26 Radar Liquid Level Sensor

FLOWLINE LR26 Radar Liquid Level Sensor

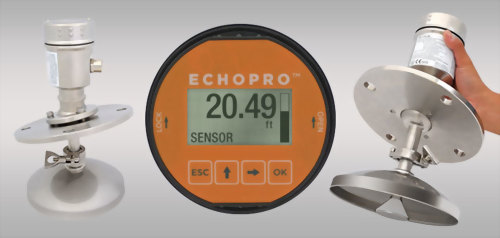

FLOWLINE LR46 Radar Solids Level Sensor
